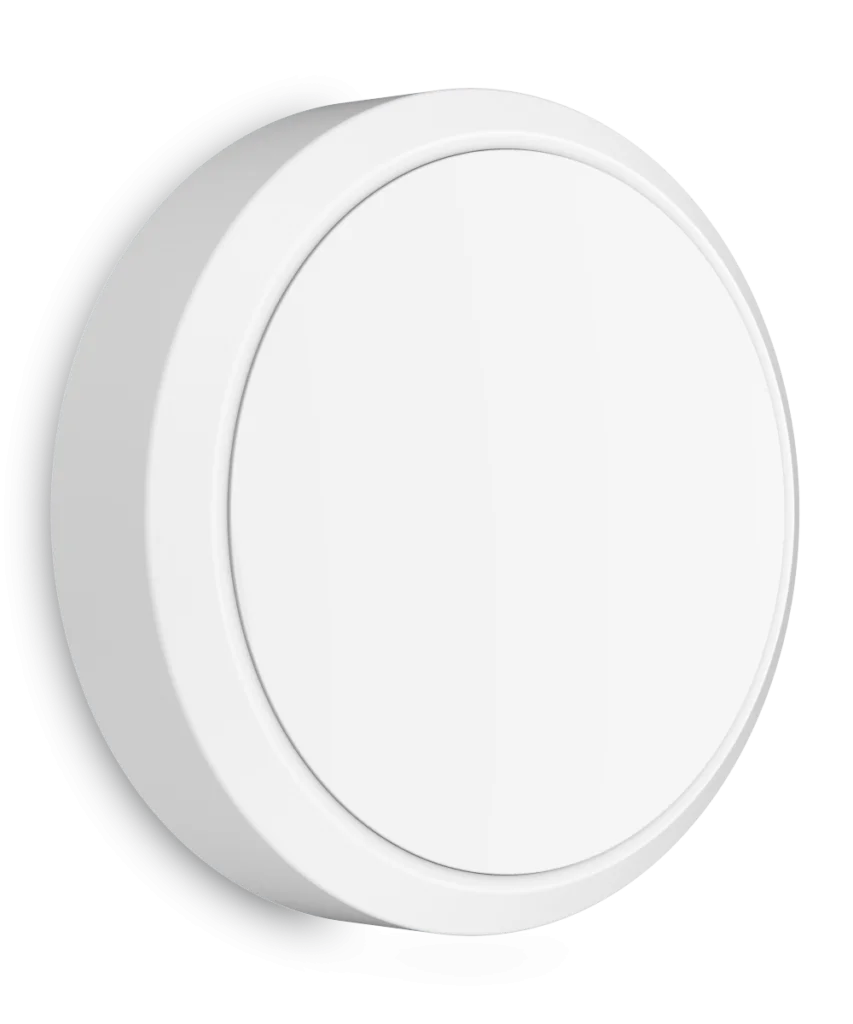

Viso II LED Bulkhead 12W IP65
Product
Code: VIS12-SCT
- IP65 & vandal resistant (IK08)
- Optional plug-in emergency module
- 20mm conduit entry
- Switchable CCT (3000/4000/5000k)
- Optional plug-in ON/OFF microwave sensor
- Integrated LED tray
- Suitable for coastal installation
- BESA box fitting points
Product Description
The Viso II IP65 LED bulkhead offers a low maintenance and robust solution to lighting in all areas where a practical lighting solution is required. The standard bulkhead can be used as a utility style bulkhead without a trim or can be enhanced with one of the two decorative trims to give a higher aesthetic appeal where required.
Product Description
The Viso II IP65 LED bulkhead offers a low maintenance and robust solution to lighting in all areas where a practical lighting solution is required. The standard bulkhead can be used as a utility style bulkhead without a trim or can be enhanced with one of the two decorative trims to give a higher aesthetic appeal where required.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK08
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Class
D
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
4000K at 9W
-

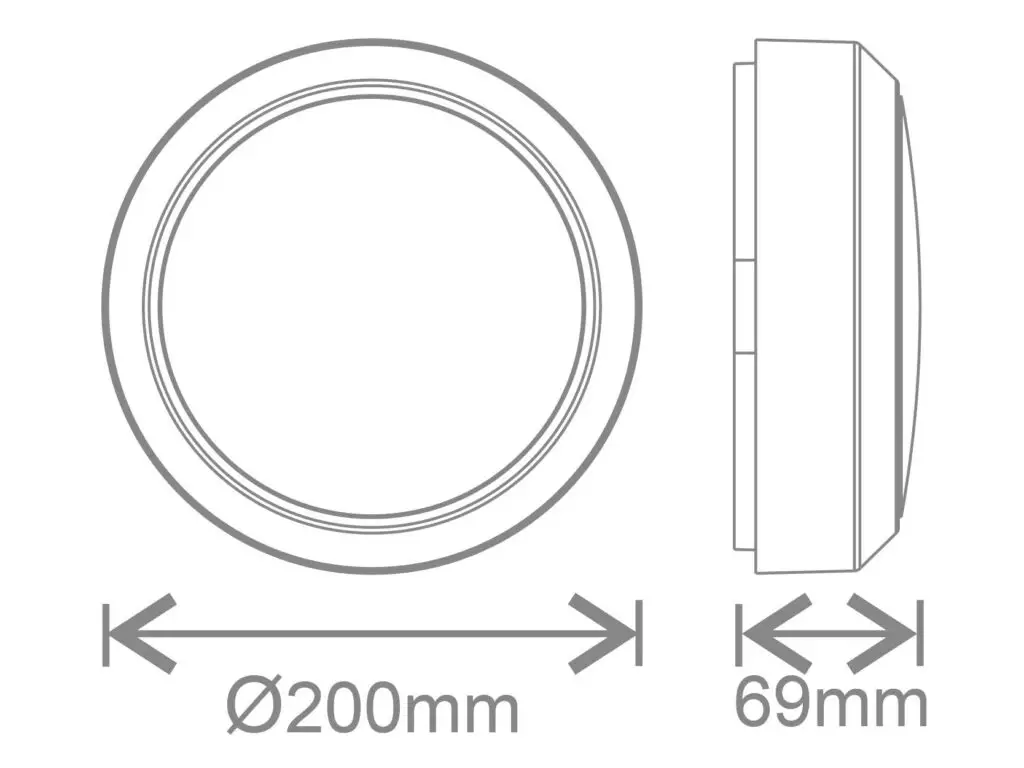

Dimensions (mm)
69x∅200
-
Max input current
5 A / 100 us
-
L80B10
109,000
-
Efficiency (lm/W)
77
-
Dimmable
N
