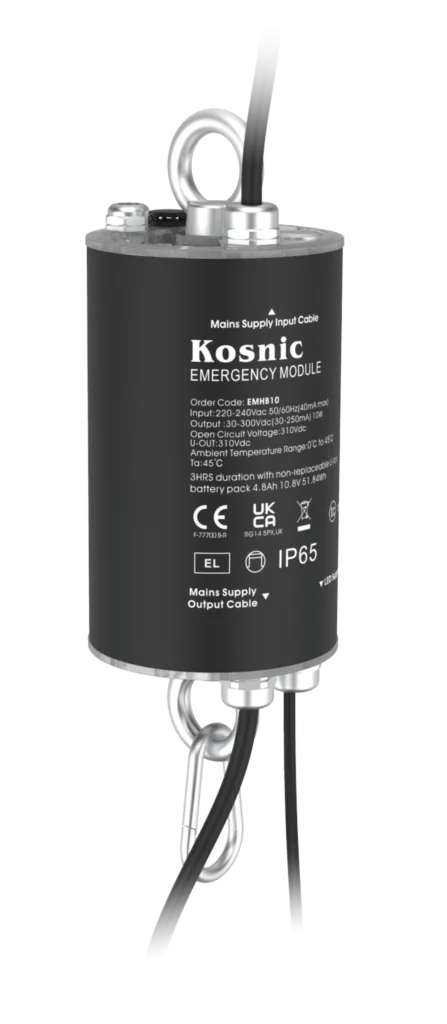

10W DALI Emergency Module for Kosnic LED high bay
Product
Code: EMHB10/DA
- IP65, class I independent driver
- Manual and Self-Test versions available
- Li-lon battery for improved lifespan allowing frequent partial discharge without battery capacity reduction
- >3hr Duration
- 8W Output
- Status LED

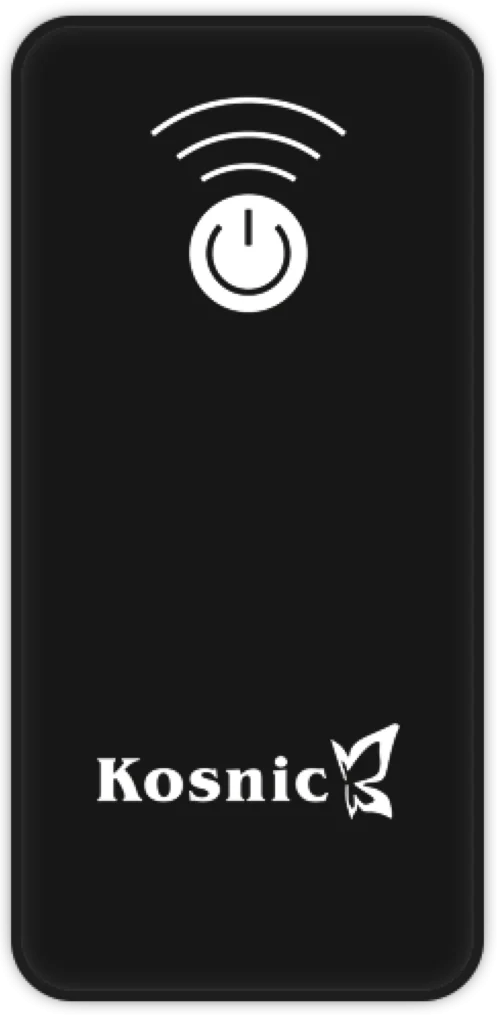

- Remote control for a quick functional test
Product Description

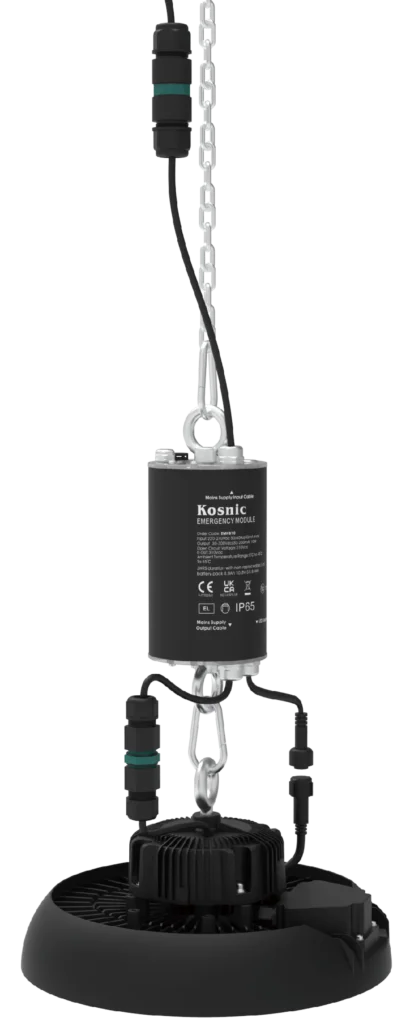

The emergency module is an optional extra for a selection of Kosnic LED High and Low Bay luminaires. This module will add a minimum 3hr duration emergency lighting option. Includles Li-lon battery with 4 years life.
Product Description
The emergency module is an optional extra for a selection of Kosnic LED High and Low Bay luminaires. This module will add a minimum 3hr duration emergency lighting option. Includles Li-lon battery with 4 years life.
General Specifications
Install Area
Internal and External
IP Rating
IP65
UEM/EME Charging Time (h)
24
Emergency conversion time
1
EME operation time
3
input current (max)
40
Max case temp (°C)
75
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-

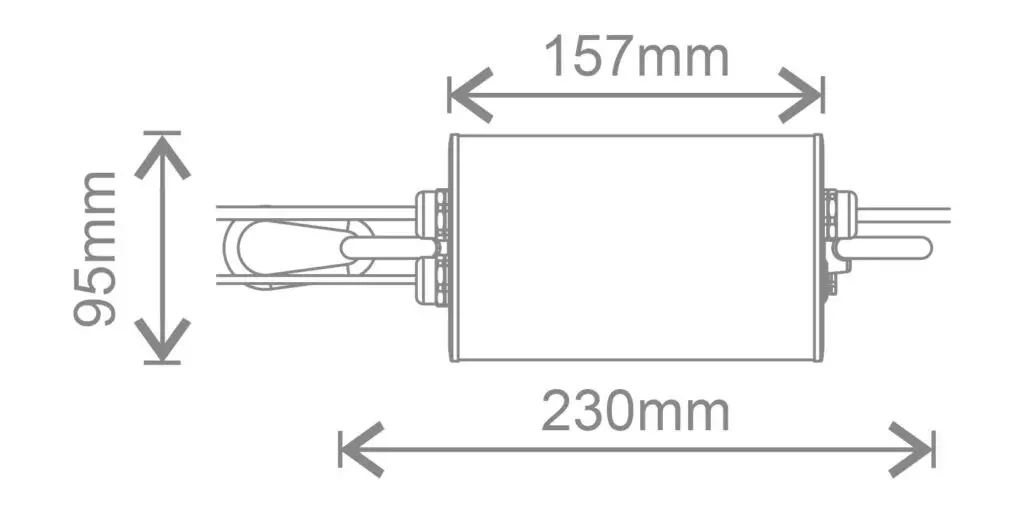

Dimensions (mm)
230x∅95
-
Battery Capacity
4,800
-
Battery Output Wattage
10
-
Battery Voltage (Vdc)
10.8
-
Output Voltage
30-300Vdc
