Doxa II Self-test Exit Sign with Multiple Mounting Positions
Product
Code: DOX20103/ST

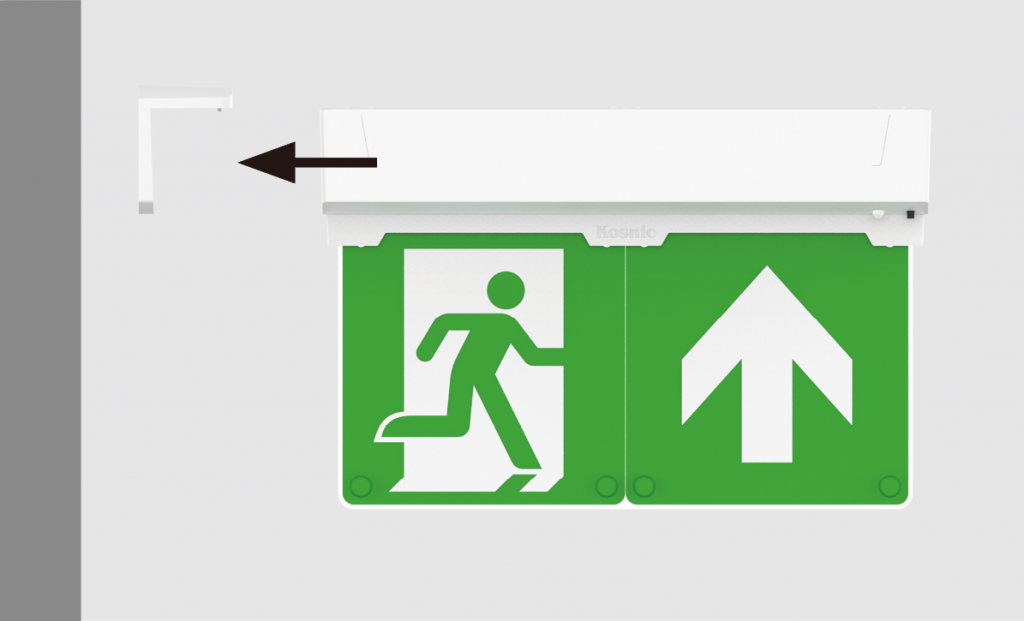

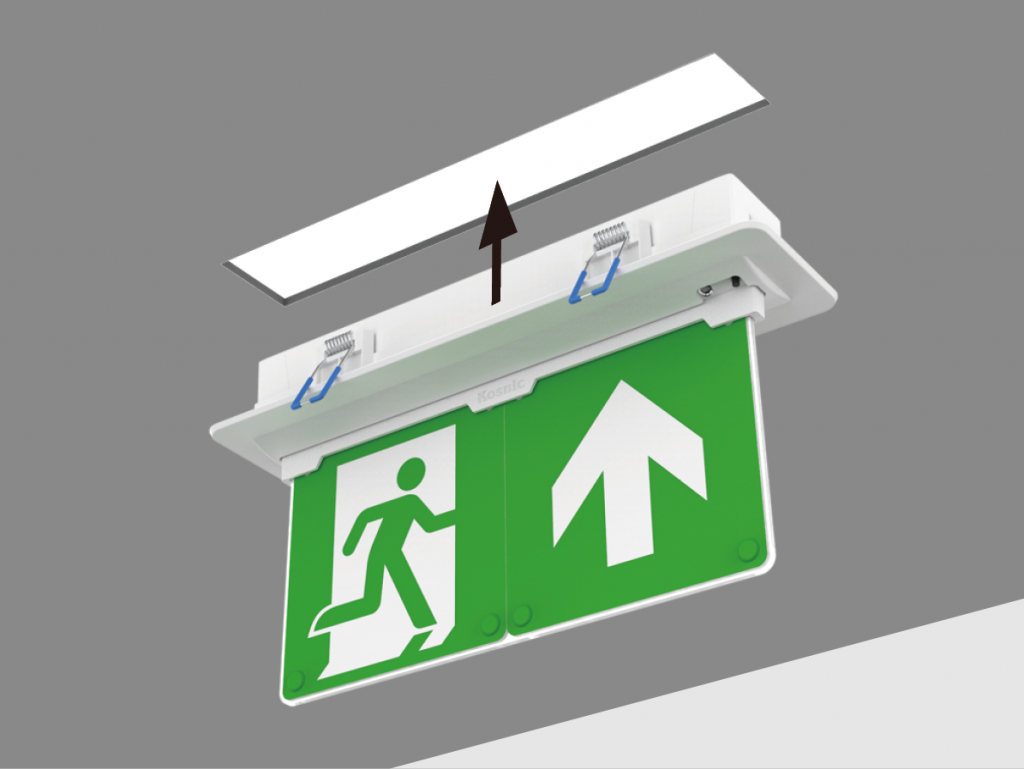

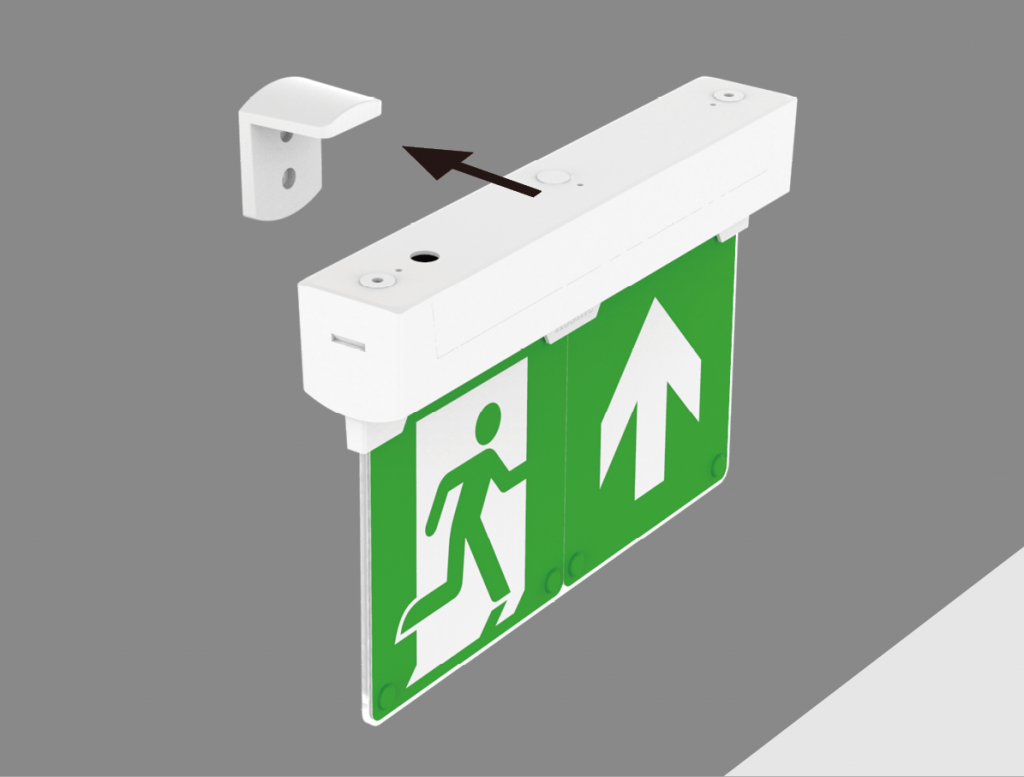

- 7 mounting positions
- Integrated mounting clips
- Maintained or non-maintained operation
- Available in self-test version
- Optional self-test model according to BS-EN-62034-2012
Product Description
The Kosnic Doxa II emergency exit sign is a self-contained, multi-purpose, maintained or non-maintained 3-hour emergency exit sign solution. The fitting is adaptable to be surface mounted in multiple positions. Also, available in self-test version.
Product Description
The Kosnic Doxa II emergency exit sign is a self-contained, multi-purpose, maintained or non-maintained 3-hour emergency exit sign solution. The fitting is adaptable to be surface mounted in multiple positions. Also, available in self-test version.
General Specifications
Install Area
Internal
IP Rating
IP20
UEM/EME Charging Time (h)
24
EME conversion time
1
EME operation time
3
input current (max)
30
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Mounting Info
Surface & Recessed: ceiling, wall, suspension, recessed
-
Emergency Luminous Flux (lm)
30
-
Maintained Lumen
50
-
Battery Capacity
1,800
-
Battery Voltage (Vdc)
3.2
-
Input Power (Max)
3
-
Inrush Current (peak/duration)
12.8 A / 116 μs
-
Output Wattage (W)
1
