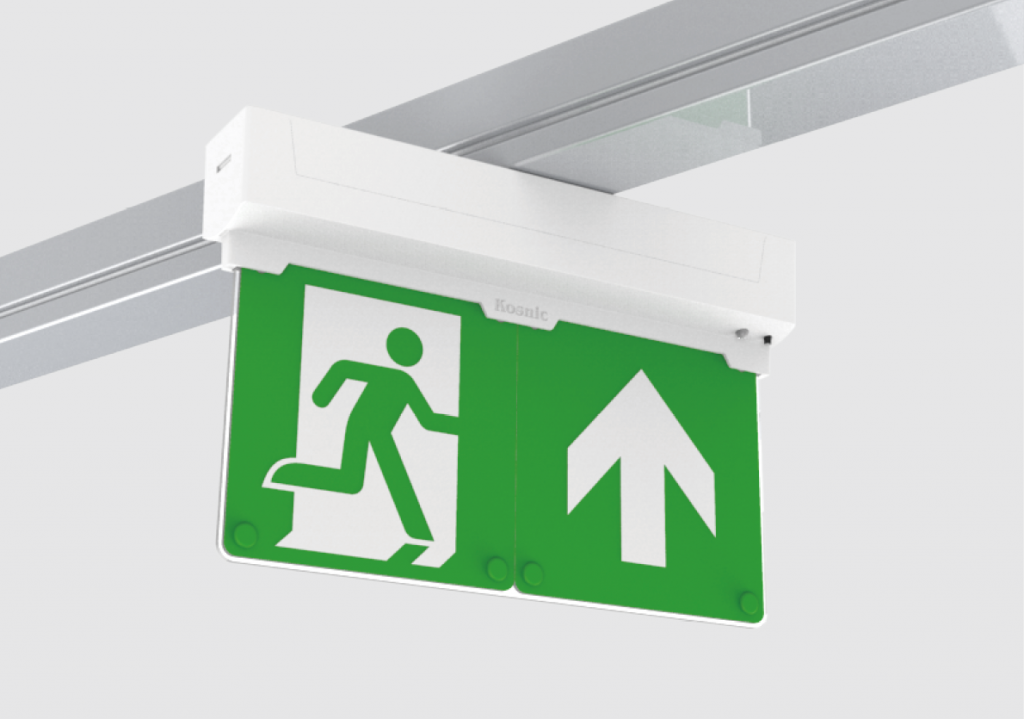

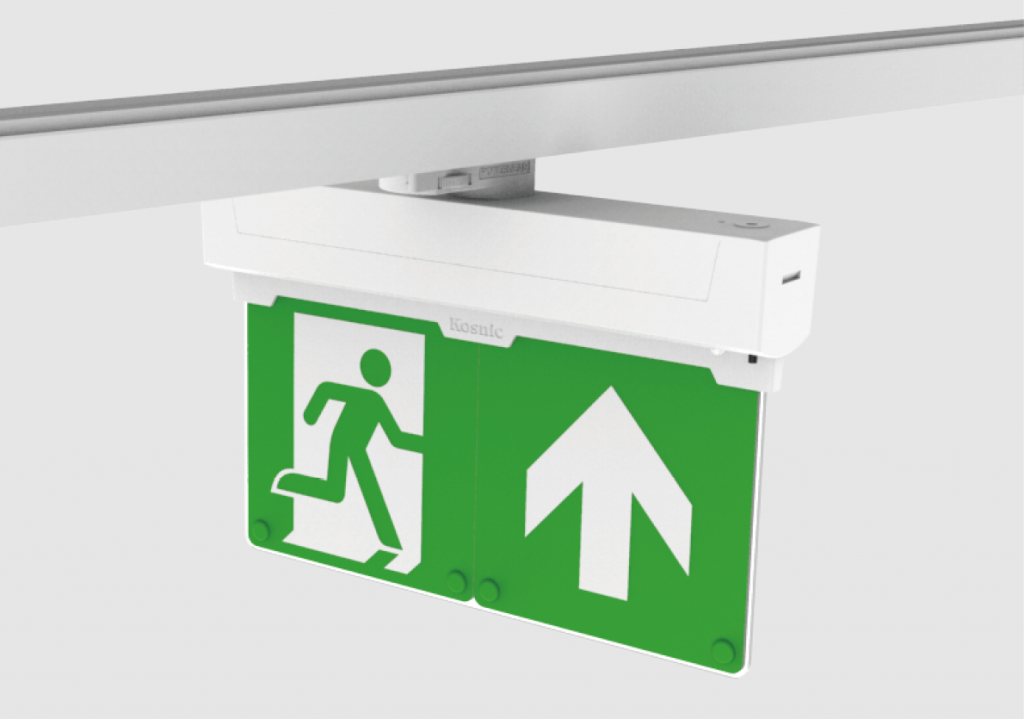

Doxa II Self-test Track Mount Exit Sign

Product Code: DOX20103-C3/SST
Old Product Code: DOX20103-C3/ST
  • Select standard or self-test mode via the internal dual-mode DIP switch
  • To set the duration test interval, press the push switch twice
  • Automatic Self-test conforming to BS-EN62034
  • 7 mounting positions
  • Integrated mounting clips
  • Maintained or non-maintained operation
  • 3 circuit track-mount version
Product Description

The Kosnic Doxa II emergency exit sign is a self-contained, multi-purpose, maintained or non-maintained 3-hour emergency exit sign solution. The fitting is adaptable to be surface mounted in multiple positions. Also, available in self-test version.

Product Description

The Kosnic Doxa II emergency exit sign is a self-contained, multi-purpose, maintained or non-maintained 3-hour emergency exit sign solution. The fitting is adaptable to be surface mounted in multiple positions. Also, available in self-test version.

Warranty Image
Warranty Image

General Specifications

Install Area
Internal
IP Rating
IP20
UEM/EME Charging Time (h)
24
EME conversion time
1
EME operation time
3
input current (max)
30

Recommended/alternatives

No alternatives

Downloadables

Technical Summary

  • Mounting Info

    Track (4-wire, 3-Circuit)

  • Emergency Luminous Flux (lm)

    30

  • Maintained Lumen

    50

  • Battery Capacity

    1,800

  • Battery Voltage (Vdc)

    3.2

  • Input Power (Max)

    3

  • Inrush Current (peak/duration)

    12.8 A / 116 μs

  • Output Wattage (W)

    1
