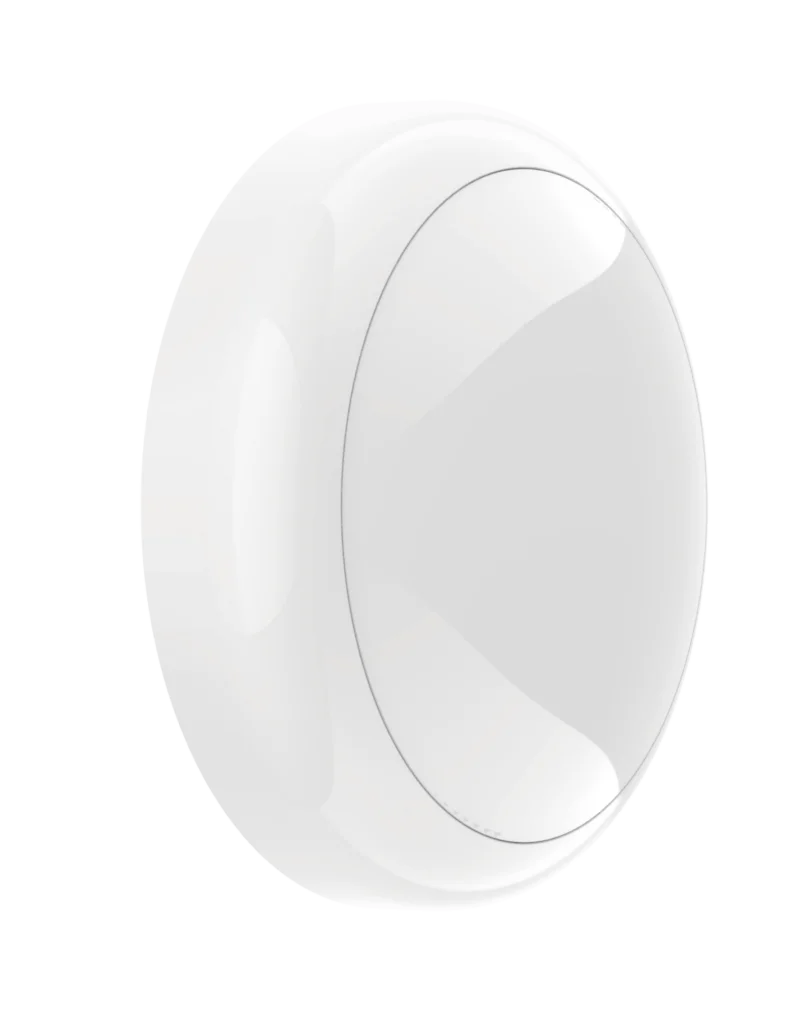

Ossa Go slim IP65 bulkhead 15W 4000K built in ON/OFF sensor
Product
Code: OSSG15-W40/S
- Choice of alternative decorative trims
- IP65 & vandal resistant (IK10)
- Integrated LED tray
- Microwave sensor version available
- 20mm conduit entry
- BESA box fitting points
- Flicker free
Product Description
The Ossa Go is a slim bulkhead with integrated LED tray offering a low maintenance solution to lighting for all areas. With 20mm Conduit entry and BESA box fitting points to ease installation and maintenance.
Product Description
The Ossa Go is a slim bulkhead with integrated LED tray offering a low maintenance solution to lighting for all areas. With 20mm Conduit entry and BESA box fitting points to ease installation and maintenance.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK10
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.80
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Detection radius
3.5
-
Detection Angle
150° wall mounting, 360° ceiling mounting
-

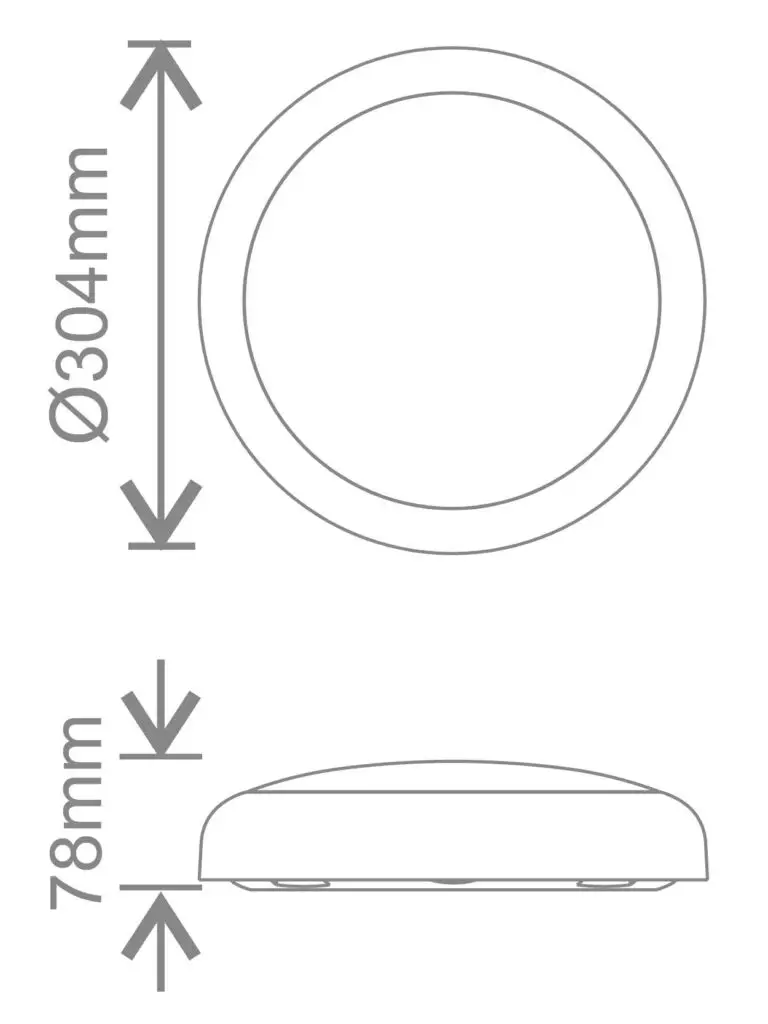

Dimensions (mm)
78x∅304
-
Max input current
5 A / 100 us
-
L80B10
96,000
-
Modes
On/Off
-
Mounting Info
Max. 4m
-
Rated Power (W)
15
-
Surge protection
500V
-
Efficiency (lm/W)
84
-
Maintained Lumen
110
