Nyos Pro circular panel downlight 4 inch 4.5-6W CCT switchable
Product
Code: NYOP4IN06-SCT
- Switchable CCT
- IP44 when recessed mounted
- Ultra slim profile
- Flicker free
- Optional DALI, 1-10V (0-10V) driver
- Loop-in & loop-out push wire connector is included
Product Description
Nyos Pro Circular LED Panel is an easy-to-retrofit replacement for downlights with wattage and CCT switchable options. This edge-lit panel is suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.
Product Description
Nyos Pro Circular LED Panel is an easy-to-retrofit replacement for downlights with wattage and CCT switchable options. This edge-lit panel is suitable for all areas, including visually demanding non-transient task areas such as offices and educational premises where users require uniform light to maintain well-being.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK02
Install Area
Internal
Nominal Life
50,000
IP Rating
IP44
Power Factor
0.93
Max case temp (°C)
75
Class
E
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
100
-
Cut-Out (mm)
∅100
-
Default Setting
6W at 4000K
-

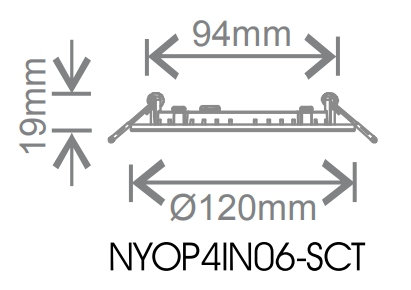

Dimensions (mm)
19x∅120
-
Max input current
2.7A/60μs
-
L80B10
47,000
-
Rated Power (W)
6
-
Surge protection
500V
-
Settable Wattage
4.5W, 6W
-
Settable CCT
3000k, 4000k, 6000k
-
Efficiency (lm/W)
127
-
Emergency Luminous Flux (lm)
400
-
Driver Maximum Power (W)
5.2
-
Driver Output Voltage (Vdc)
30-36
-
Dimmable
N
