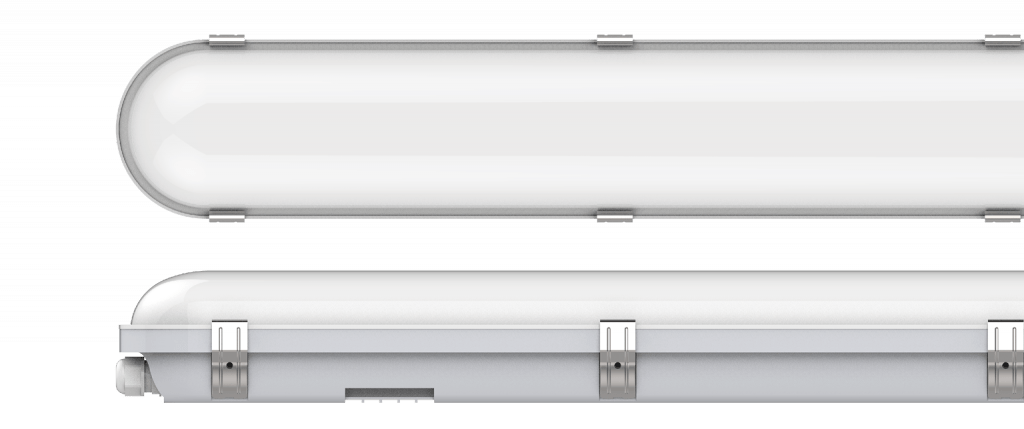

Congo II, non-corrosive 4ft twin, CCT switchable 36W
Product
Code: CON24FT36-SCT
Old Product
Code: CON4FT36-SCT
- T8 non-corrosive LED replacement
- Switchable CCT (3000/4000/6000K)
- Optional emergency module
- Optional microwave motion and daylight sensor with corridor dimming
- Durable and rugged IK10 polycarbonate construction
- DALI 2, 1-10V (0-10V) & PUSH button option available
- Suitable for through-wiring
- Opal diffuser
Product Description
The Congo II non-corrosive battens offers outstanding lumen efficiency and have a switchable colour temperature. The battens are suitable for a wide range of commercial applications including warehouses, factories and garages. Optional emergency module and a microwave motion sensor available.
Product Description
The Congo II non-corrosive battens offers outstanding lumen efficiency and have a switchable colour temperature. The battens are suitable for a wide range of commercial applications including warehouses, factories and garages. Optional emergency module and a microwave motion sensor available.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK10
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.94
Class
D
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
4000K
-
Dimensions (mm)
1200x127x89
-
Max input current
39 A / 52 μs
-
L80B10
54,000
-
Rated Power (W)
36
-
Settable CCT
3000k, 4000k, 6000k
-
Efficiency (lm/W)
121
-
Maintained Lumen
300
-
Dimmable
N
