Avon 4 sensor non-corrosive batten 4ft single 10/13/16/18W 4000K
Product
Code: AVO44FS18-W40/S
Old Product
Code: KENCC10-18S4F-W40/S, AVO4FS18-W40/S
- T8 non-corrosive LED replacement
- IP65 and vandal resistant
- Optional emergency module
- Optional built-in ON/OFF microwave sensor
- Opal diffuser
- 20mm conduit entry
Product Description
The Kosnic Avon 4 LED non-corrosive battens utilise high performance LEDs to offer outstanding lumen efficiency and are suitable for a wide range of commercial applications including warehouses, factories and garages. The product range has optional microwave sensor and emergency options.
Product Description
The Kosnic Avon 4 LED non-corrosive battens utilise high performance LEDs to offer outstanding lumen efficiency and are suitable for a wide range of commercial applications including warehouses, factories and garages. The product range has optional microwave sensor and emergency options.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK08
Install Area
Internal and External
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.90
Class
D
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Detection radius
7
-
Detection Angle
150° wall mounting, 360° ceiling mounting
-
Default Setting
18W
-

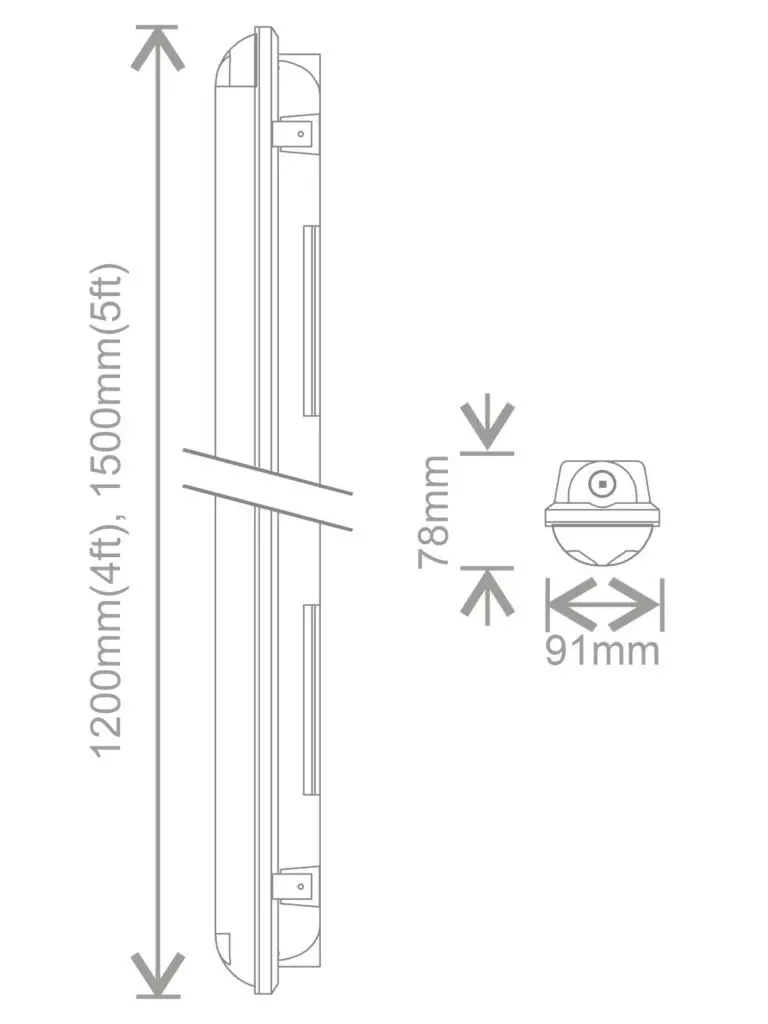

Dimensions (mm)
1200x91x78
-
Max input current
6.5A/25 μs
-
L80B10
139,000
-
Max load resistive (W)
800
-
Max load inductive (W)
400
-
Mounting Info
Height max. 4m
-

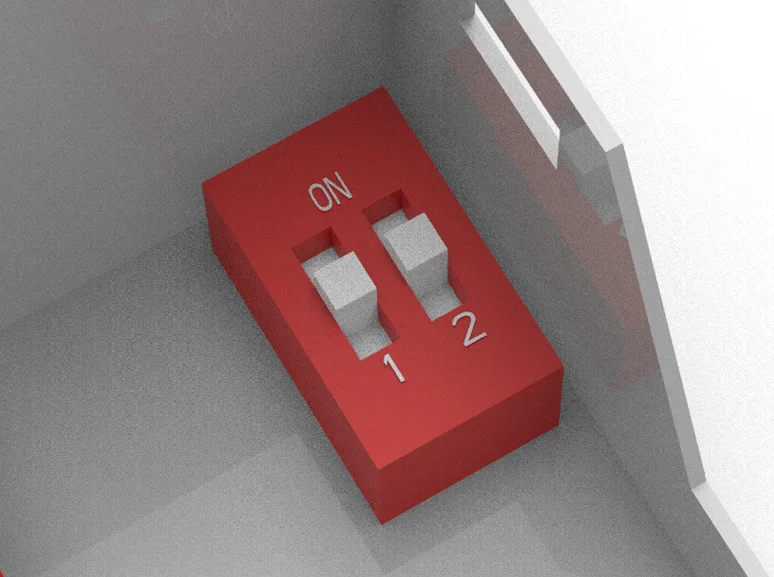

Settable Wattage
10W, 13W, 16W, 18W
-
Efficiency (lm/W)
135
-
Maintained Lumen
350
-
Dimmable
N
