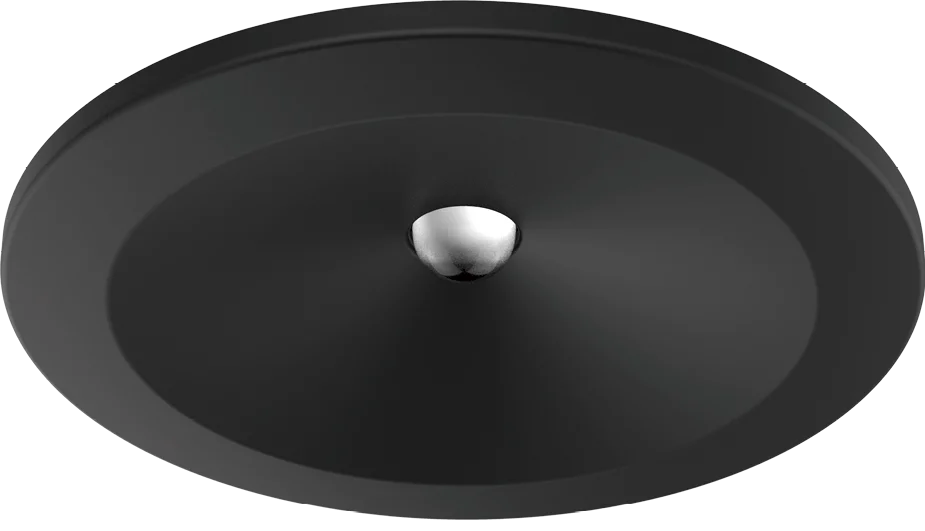

Nitro standard, 3W EME downlight, non-maintained, Black

Product Code: NTR03-BLK
  • Standard and corridor version with different lens
  • Non-maintained, >3hrs
Product Description

The Kosnic LED Non-Maintained Emergency Downlights are discrete recessed fittings that provide emergency lighting only. The downlights are available with a standard lens design with a circular light pattern or a corridor version lens with a beam that is designed to emphasis illumination along one axis more than the other.

Product Description

The Kosnic LED Non-Maintained Emergency Downlights are discrete recessed fittings that provide emergency lighting only. The downlights are available with a standard lens design with a circular light pattern or a corridor version lens with a beam that is designed to emphasis illumination along one axis more than the other.

Warranty Image
Warranty Image

General Specifications

IP Rating
IP20
Emergency conversion time
1
EME operation time
3
input current (max)
32
Max case temp (°C)
75
Install Area
Internal
IP Rating
IP20
Emergency conversion time
1
EME operation time
3
input current (max)
32
Max case temp (°C)
75

Recommended/alternatives

No alternatives

Downloadables

Technical Summary

  • Efficiency (lm/W)

    100

  • Emergency Luminous Flux (lm)

    130

  • Maintained Lumen

    130

  • Battery Capacity

    2,000

  • Battery Voltage (Vdc)

    3.6

  • Input Power (Max)

    3

  • Test Function

    Manual

  • Output Wattage (W)

    1.3

  • Beam Angle

    "46 Standard beam, 25 Transverse/120 Axial Corridor beam"

  • Cut-Out (mm)

    ∅50mm

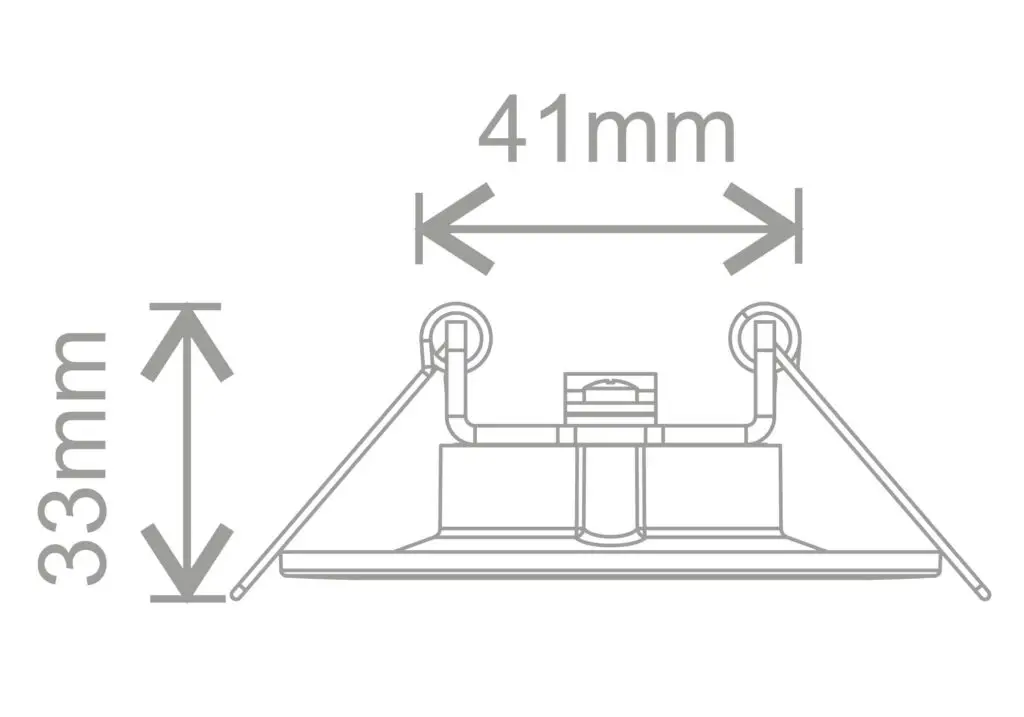

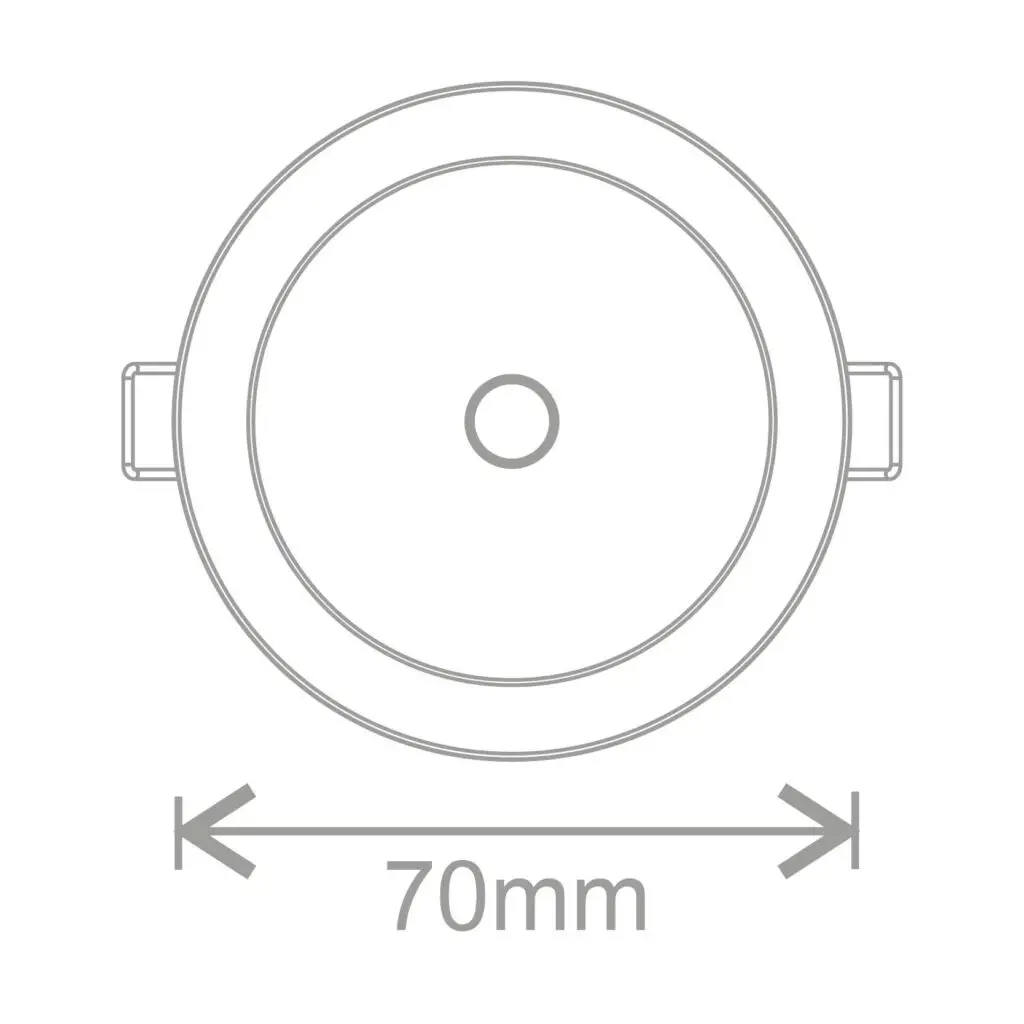

  • Dimensions (mm)

    33x∅70

  • Surge protection

    1000V

  • Efficiency (lm/W)

    100

  • Emergency Luminous Flux (lm)

    130

  • Maintained Lumen

    130

  • Battery Capacity

    2,000

  • Battery Voltage (Vdc)

    3.6

  • Input Power (Max)

    3

  • Test Function

    Manual

  • Output Wattage (W)

    1.3
