Mauna 3 Pro firerated downlight 5W/7W CCT switch
Product
Code: MAU307PR
Old Product
Code: MAU208PR
- High efficiency up to 134lm/W
- Switchable wattage and CCT (2700K/3000K/4000K/6000K)
- Optional add on emergency kits, available in standard and self-test
- Optional PIR sensors compatible with Uni-Remote

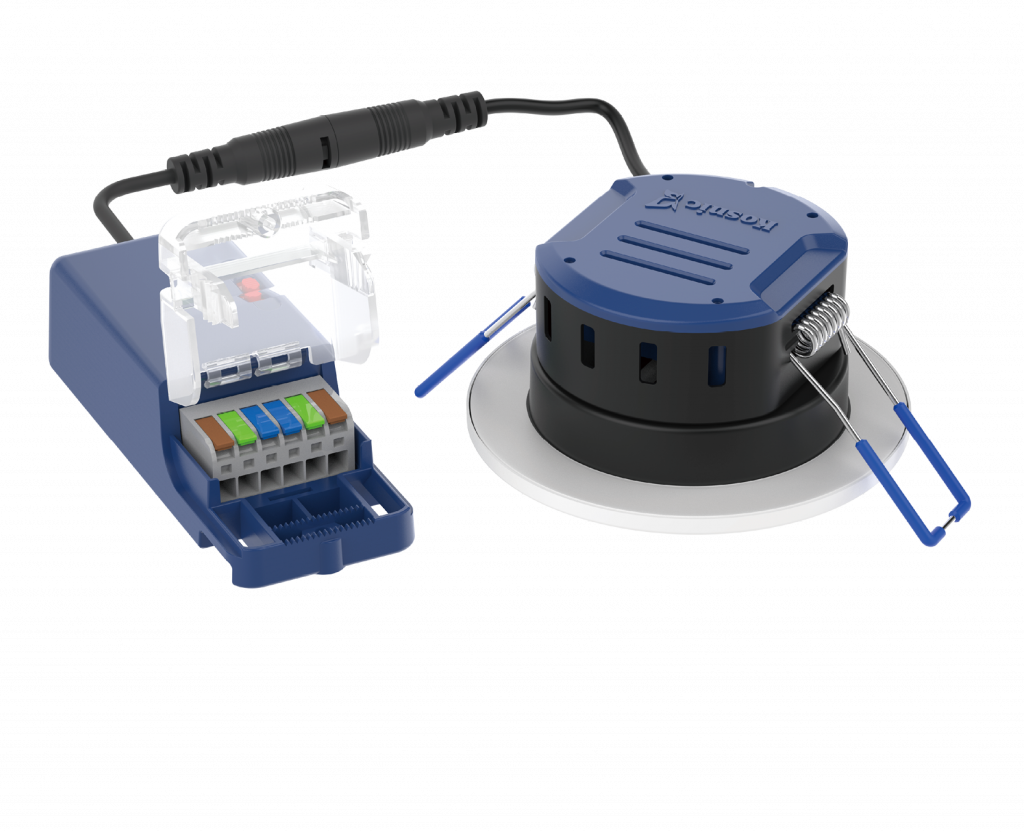

- Independent driver and junction box for fast and easy connection
- Dimmable
- Can be installed under insulation
- Coloured LENNEL push-wire terminals
- Compact size with a void of only 39mm
Product Description
The Mauna Pro adds wattage switching with options for 5W or 7W settings. This is in addition to the features of the Mauna II, taking the list of features up to to an impressive: Magnetic bezels, fire rating, low void clearance, CCT switching, mains dimming, IP65 rating, and ability to be installed under installation.
Product Description
The Mauna Pro adds wattage switching with options for 5W or 7W settings. This is in addition to the features of the Mauna II, taking the list of features up to to an impressive: Magnetic bezels, fire rating, low void clearance, CCT switching, mains dimming, IP65 rating, and ability to be installed under installation.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-30°C to 50°C
IK Rating
IK07
Install Area
Internal
Nominal Life
50,000
IP Rating
IP65
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-

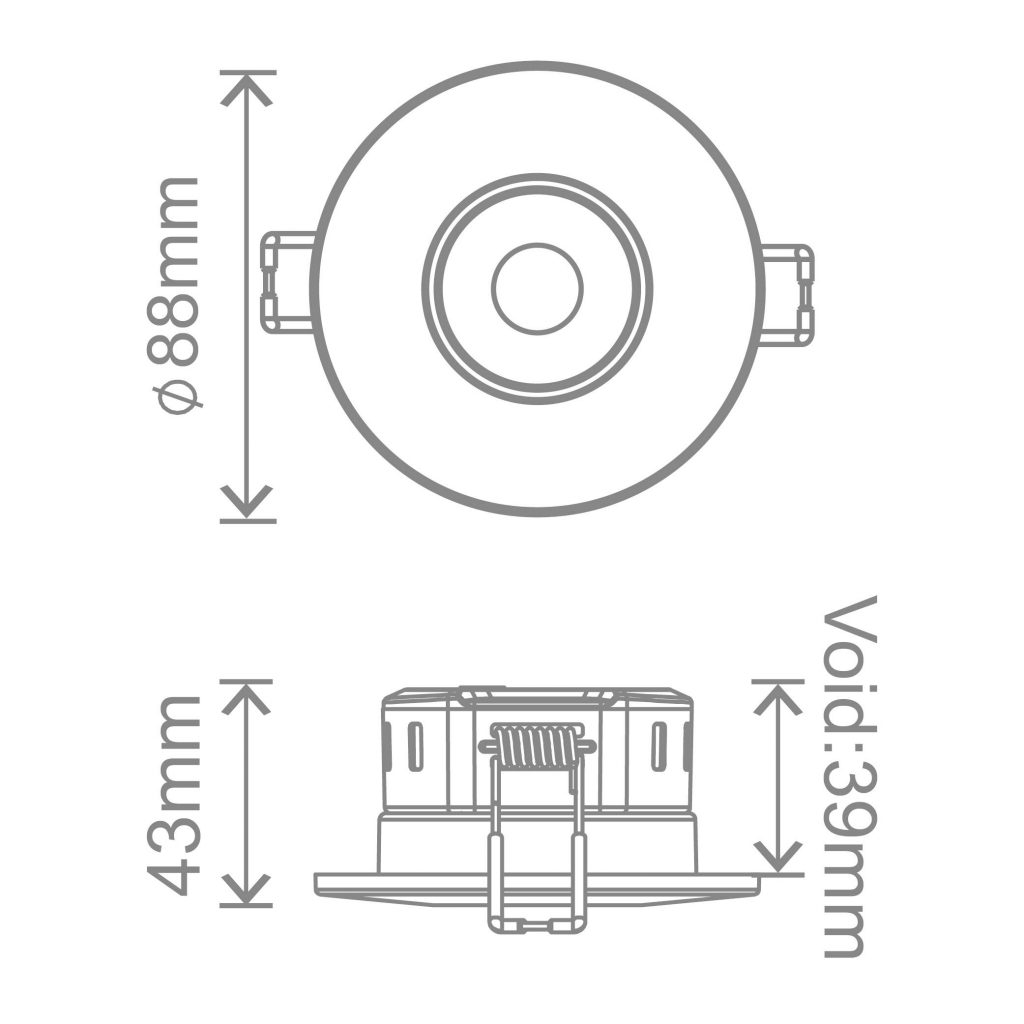

Dimensions (mm)
43x∅88
