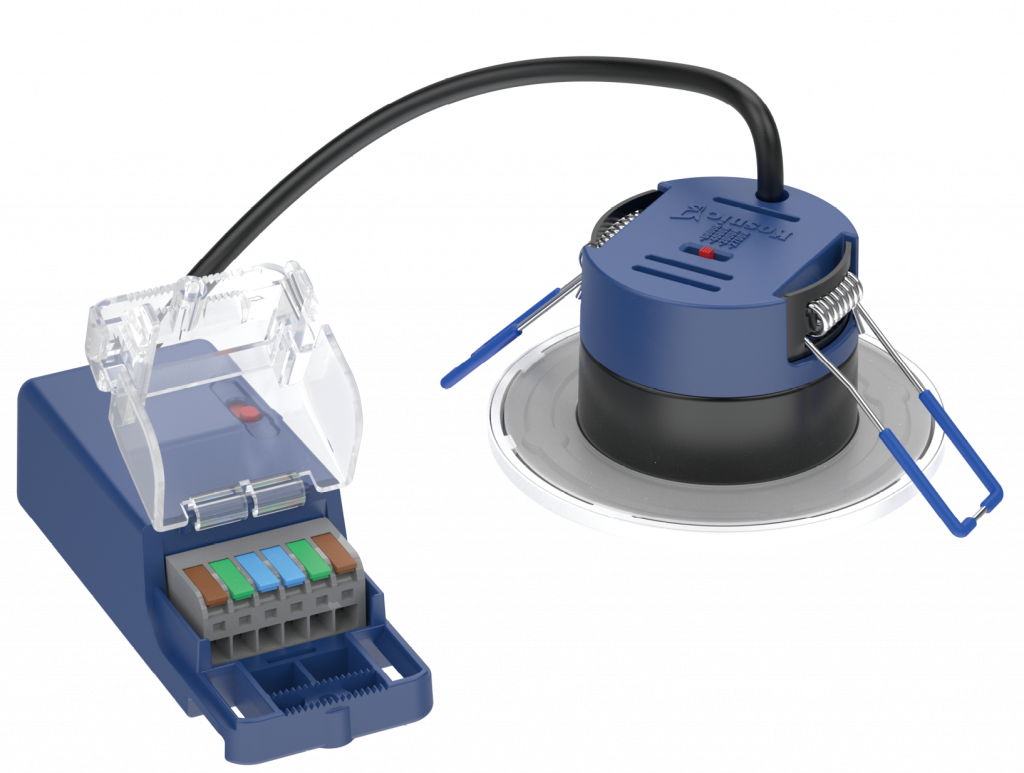

Mauna 3 Plus fixed firerated downlight 6/4.5W 4CCT switch
Product
Code: MAU306PL
Old Product
Code: MAU206PL
- Integrated dimmable driver
- Interchangeable magnetic bezels with different finishes
- Can be installed under Insulation layer
- Compact size with void of only 48mm
- CCT switchable with 4 choices
- Acoustically rated in accordance with BS EN ISO 10140-2:2021 and BS EN ISO 10140-3:2021
Product Description
The Mauna Plus range as well as having the fire rating, ability to be installed under insulation, and low void clearance. With wattage switching and a CCT options. Also anti-glare, and tilting options. With the magnetic bezels the Mauna Plus range doesn’t put functionality at the cost of aesthetics.
Product Description
The Mauna Plus range as well as having the fire rating, ability to be installed under insulation, and low void clearance. With wattage switching and a CCT options. Also anti-glare, and tilting options. With the magnetic bezels the Mauna Plus range doesn’t put functionality at the cost of aesthetics.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-30°C to 50°C
IK Rating
IK07
Install Area
Internal
Nominal Life
50,000
IP Rating
IP65
Class
F
CRI
≥82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
65
-
Cut-Out (mm)
∅64mm
-
Default Setting
3000K at 6W
-

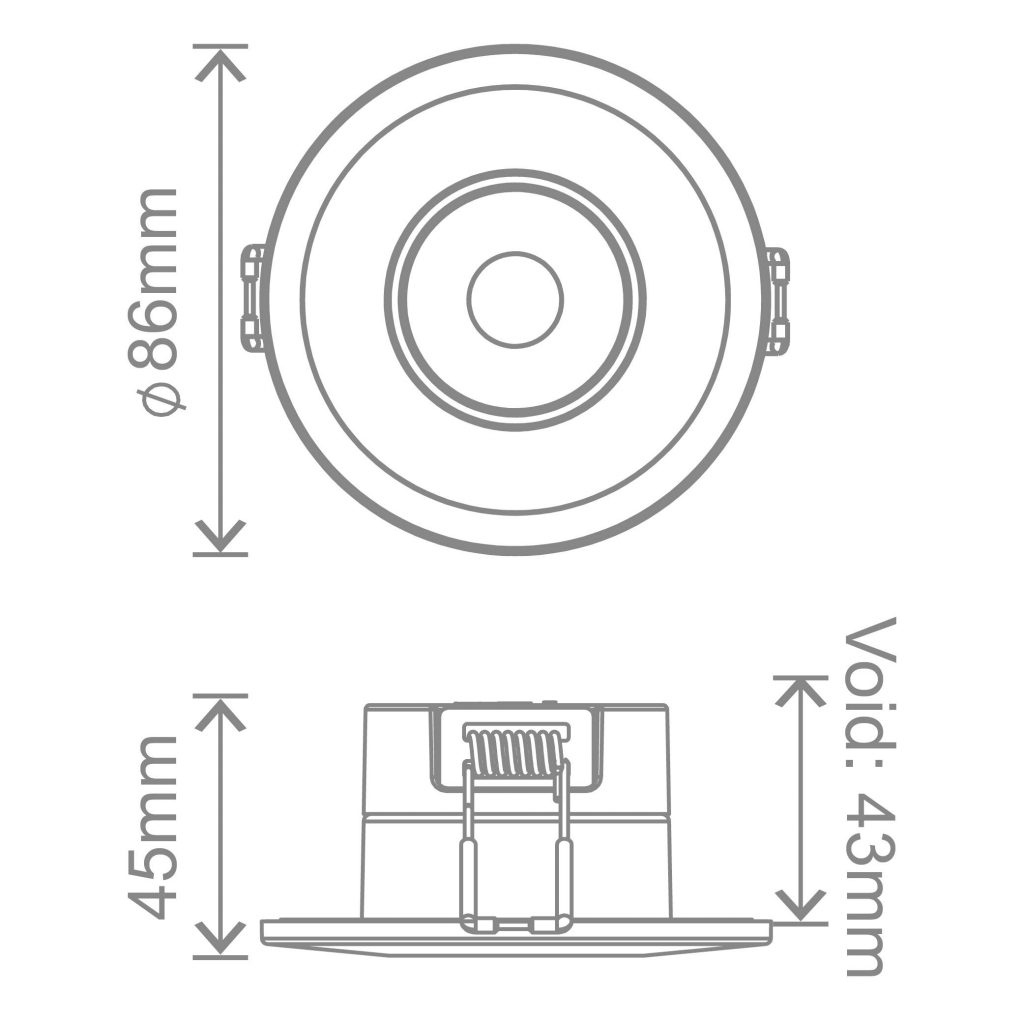

Dimensions (mm)
46x∅86
-
Max input current
10A/150µs
-
L80B10
50,000
-
Rated Power (W)
6
-
Settable Wattage
4.5W, 6W
-
Settable CCT
2700k, 3000k, 4000k, 6000k
-
Efficiency (lm/W)
115
-
Emergency Luminous Flux (lm)
150
-
Dimmable
Y
