Alden 4 Anti-Glare 25W/28W/32W/36W backlit LED panel 4000k
Product
Code: ALD4AG25-W40
- Switchable wattage
- Available in anti-glare version with UGR <17 and standard version with UGR <19
- High efficiency up to 140lm/W
- Save up to 17% energy usage compared with Alden III
- TP(a) rated diffuser for enhanced fire safety
- DALI 0-10V and PUSH dimming alternative driver available
- Optional plug-in emergency modules, available in standard, self-test and DALI
- IP44 when ceiling recessed mounted
- Visual comfort flicker free technology with short term flicker perceptibility (Pst) being measured at 0
- SDCM <3
Product Description

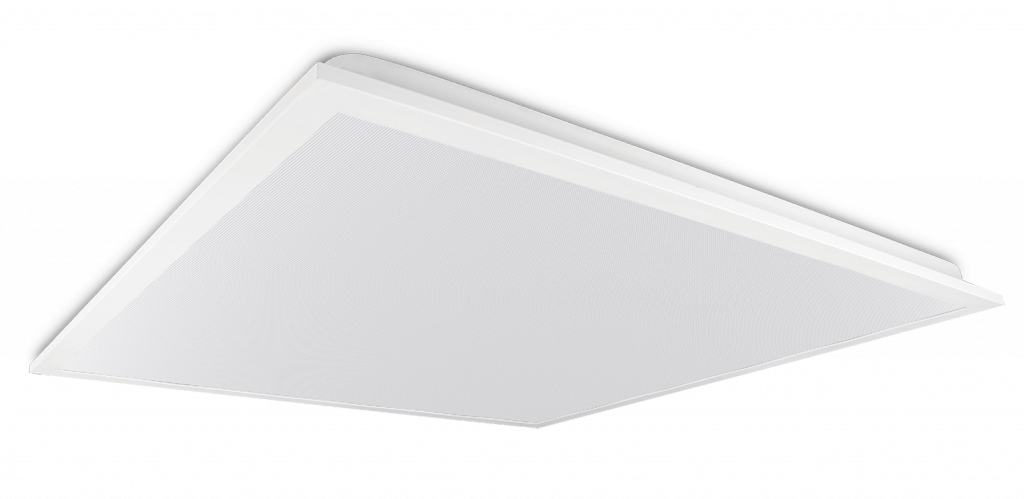

The Kosnic Alden 4 LED panel offers direct backlit lighting with wide-angle optics to achieve even light distribution across the surface of the luminaire and is an easy-to-retro replacement for in-lay ceiling tile fittings. The panels are supplied with flicker-free drivers as standard.
Product Description
The Kosnic Alden 4 LED panel offers direct backlit lighting with wide-angle optics to achieve even light distribution across the surface of the luminaire and is an easy-to-retro replacement for in-lay ceiling tile fittings. The panels are supplied with flicker-free drivers as standard.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK04
Install Area
Internal
Materials
Housing: Iron + aluminium, Diffuser: Polystyrene TP(a)
Nominal Life
50,000
IP Rating
IP44
Power Factor
0.95
Max case temp (°C)
75
Class
D
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Dimensions (mm)
595x595x26
-
Max input current
34A/220uS
-
L80B10
111,000
-
Surge protection
1000V
-
Maintained Lumen
500
-
Driver Maximum Power (W)
40
-
Driver Output Voltage (Vdc)
30-42
-
Dimmable
N
