Polo II LED bulkhead 9/12/15W wattage & CCT switchable
Product
Code: POL215-SCT
Old Product
Code: POL15-SCT
- High efficiency up to 140lm/W
- Switchable wattage and CCT (3000/3500/4000/5000K)
- Choice of alternative decorative trims
- Optional plug-in microwave corridor sensor compatible with Uni-Remote
- Optional plug-in mircowave ON/OFF sensor
- Optional plug-in emergency modules, available in standard, self-test and DALI
- DALI and PUSH dimming alternative driver available
- Twist & lock diffuser for fast installation
- BESA box fitting points
- IP65 and vandal resistant (IK10)
Product Description

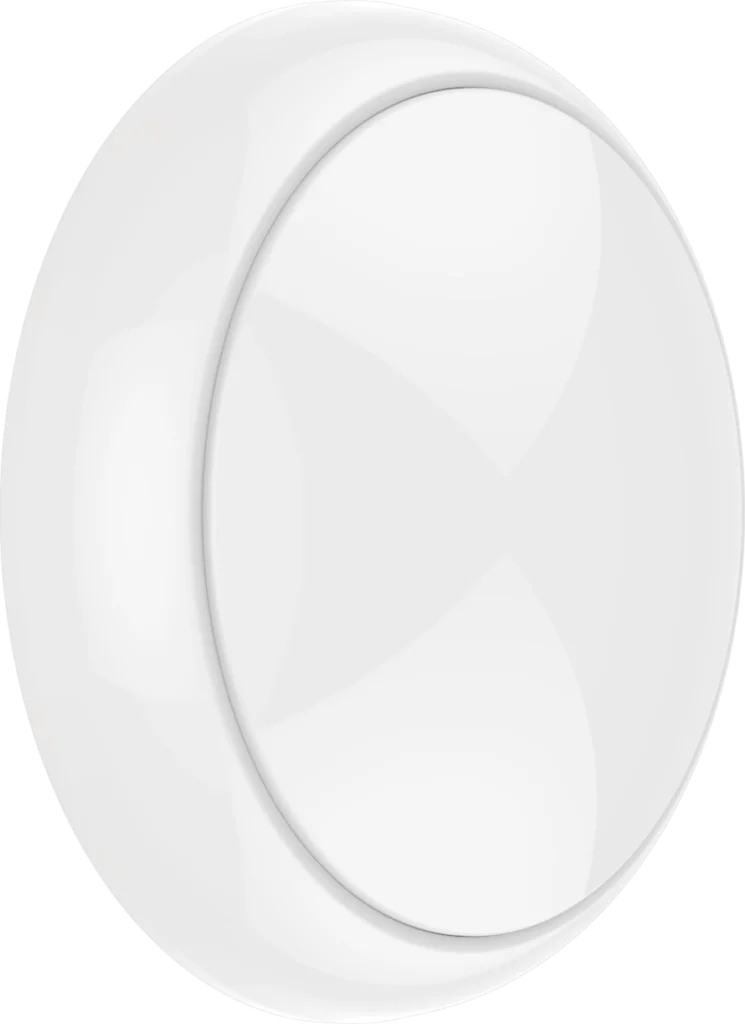

The Kosnic Polo II Integrated LED Bulkhead comes with built-in LED modules with a design that offers selectable wattage and CCT. The bulkhead is IP65 rated and IK10 vandal resistant. Also, available manual or self-test emergency modules and a microwave sensor optional add-ons. A simple, elegant and practical lighting solution.
Product Description
The Kosnic Polo II Integrated LED Bulkhead comes with built-in LED modules with a design that offers selectable wattage and CCT. The bulkhead is IP65 rated and IK10 vandal resistant. Also, available manual or self-test emergency modules and a microwave sensor optional add-ons. A simple, elegant and practical lighting solution.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK10
Install Area
Internal and External
Materials
Housing Polycarbonate, Diffuser ABS
Nominal Life
40,000
IP Rating
IP65
Power Factor
0.9
Class
B
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Default Setting
12W at 4000K
-

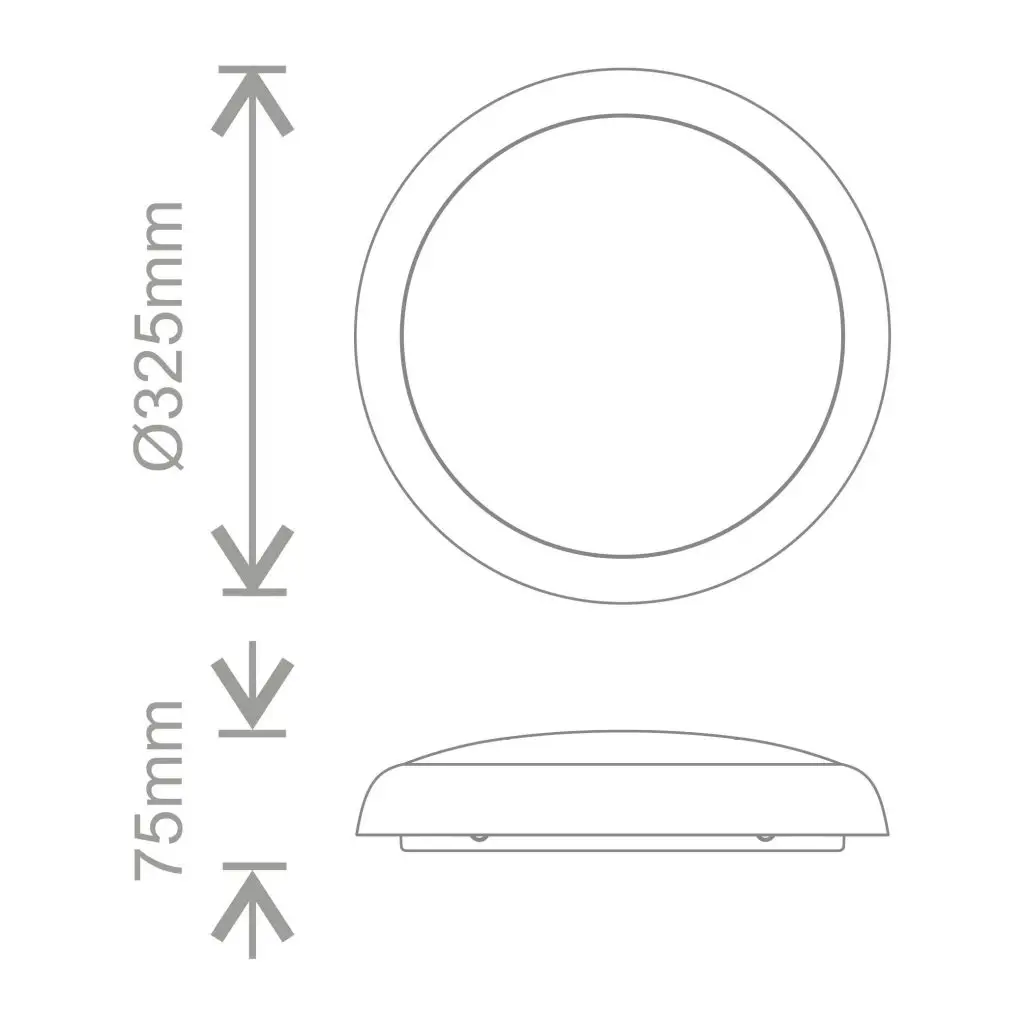

Dimensions (mm)
75x∅325
-
L80B10
101,000
-
Surge protection
1000V
-
Settable Wattage
9W, 12W, 15W
-
Settable CCT
3000k, 3500k, 4000k, 5000k
-
Efficiency (lm/W)
140
-
Maintained Lumen
110
-
Dimmable
N
