Mauna III firerated downlight 4W/6W CCT switchable
Product
Code: MAU306
Old Product
Code: MAU206
- High efficiency up to 132lm/W

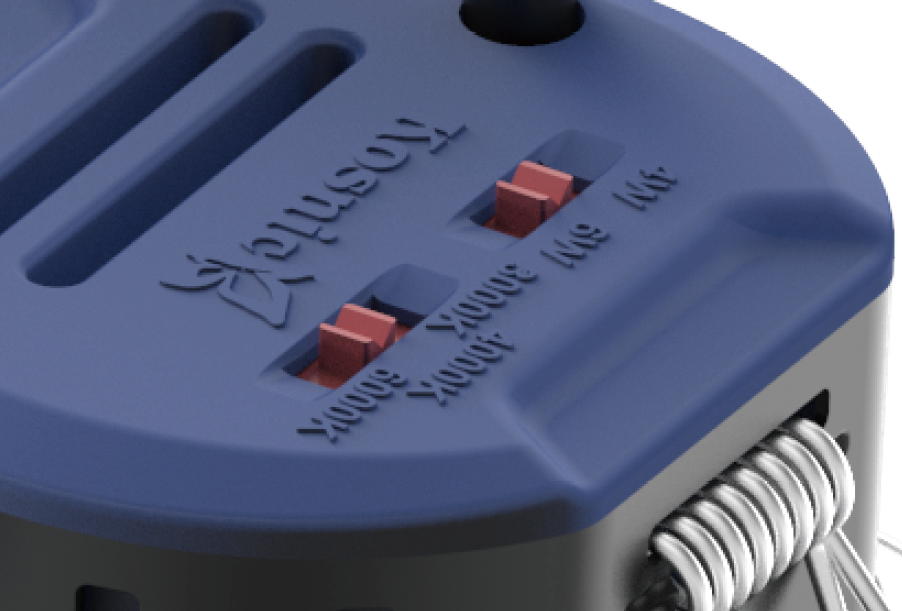

- Switchable wattage and CCT (3000/4000/6000k)
- Optional add-on emergency kits, available in standard and self-test
- Optional PIR sensors compatible with Uni-Remote
- Integrated dimmable driver
- Interchangeable magnetic bezels with different finishes
- Can be installed under insulation layer with void of 40mm
- Compact size

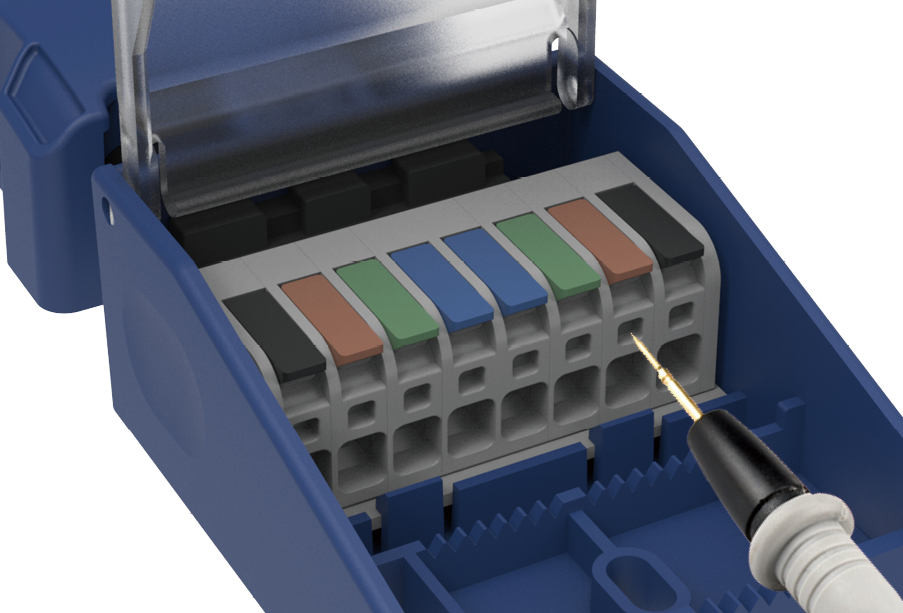

- Plug-in push wire terminal
- 5 multipack available
Product Description
The Kosnic Mauna III 4W/6W Dimmable Fire Rated Downlights are suitable for 30, 60 and 90 minute applications and may be installed under insulation. Can be dimmed with mains dimmer switches and have a choice of interchangeable magnetic bezels with different finishes. The white bezel is supplied as standard.
Product Description
The Kosnic Mauna III 4W/6W Dimmable Fire Rated Downlights are suitable for 30, 60 and 90 minute applications and may be installed under insulation. Can be dimmed with mains dimmer switches and have a choice of interchangeable magnetic bezels with different finishes. The white bezel is supplied as standard.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-30⁰C to 50⁰C
IK Rating
IK07
Install Area
Internal
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.7
Max case temp (°C)
75
Class
F
CRI
80
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
65
-
Cut-Out (mm)
68
-
Default Setting
6W at 3000k
-

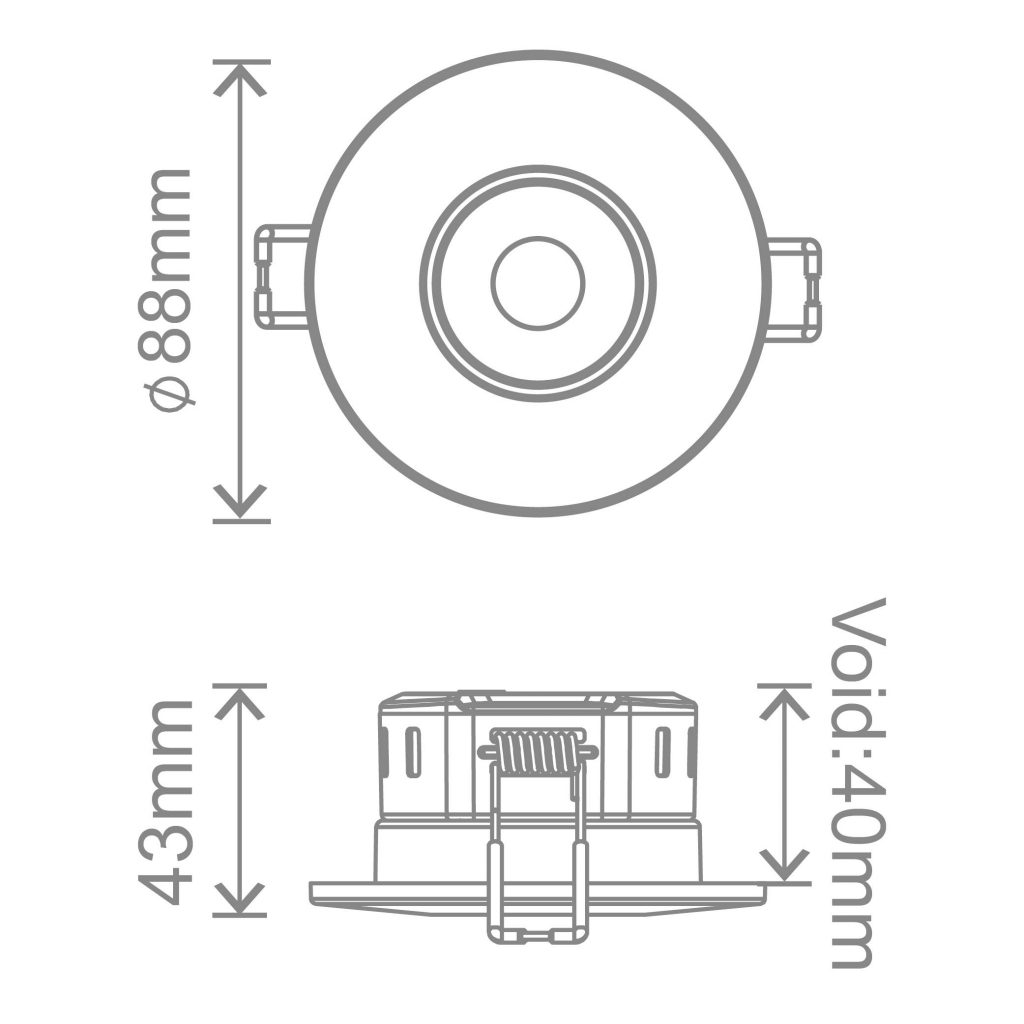

Dimensions (mm)
43x∅88
-
Max input current
1.05A / 40μs
-
L80B10
76,000
-
Surge protection
2000V
-
Settable Wattage
4W, 6W
-
Settable CCT
3000k, 4000k, 6000k
-
Driver Maximum Power (W)
6.6
-
Driver Output Voltage (Vdc)
250
-
Dimmable
Y
