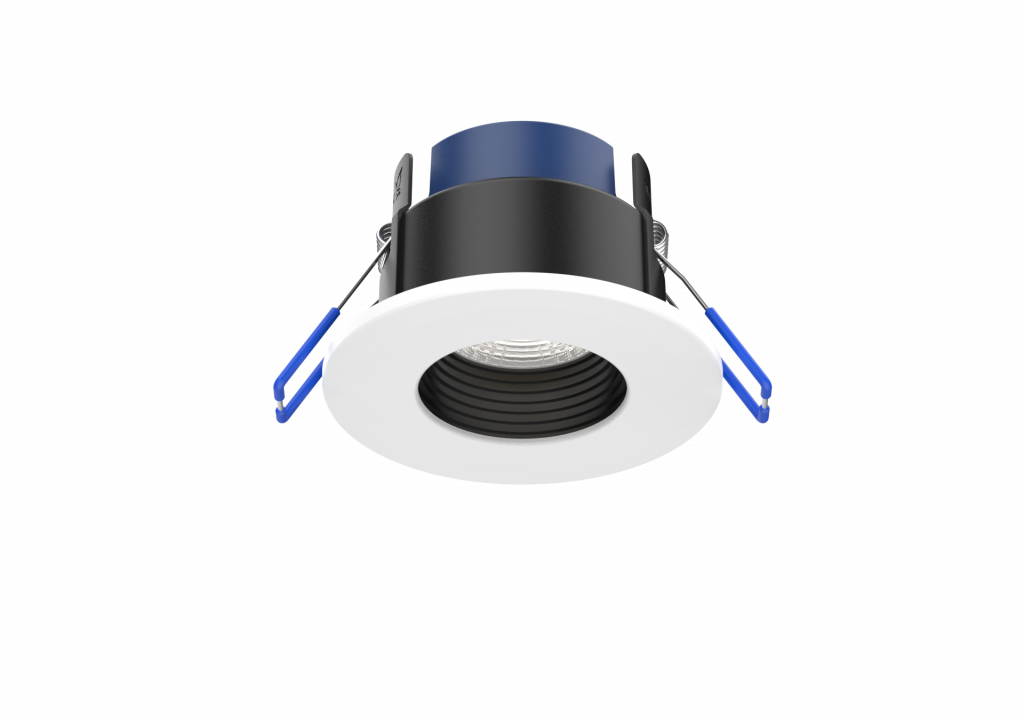

Mauna 3 Anti-glare fire rated Downlight 5W/7W switchable
Product
Code: MAU307AG
- Switchable wattage and CCT (2700/3000/4000/6000k)
- Optional add-on emergency kits, available in standard and self-test
- Optional PIR sensors compatible with Uni-Remote
- Integrated dimmable driver
- Interchangeable magnetic bezels with different finishes
- Can be installed under insulation layer
- Compact size with void of 60mm
- White and satin chrome bezel included

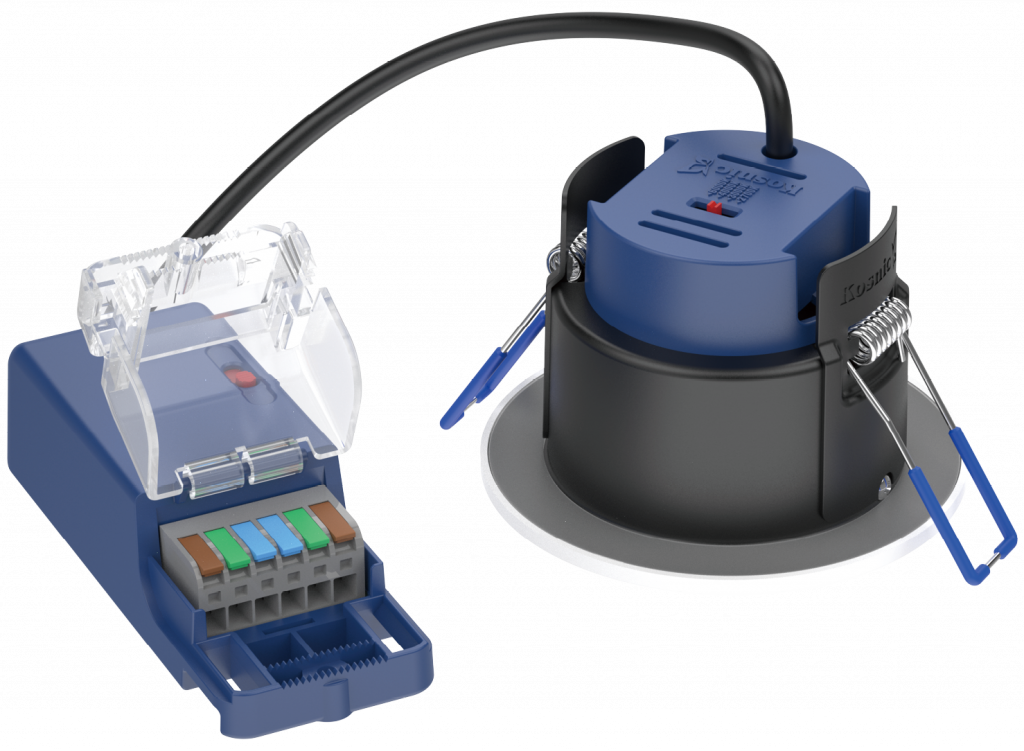

- Coloured LENNEL push-wire terminals
Product Description
The Mauna Plus range as well as having the fire rating, can be installed under insulation and low void clearance. With wattage switching and CCT options. Also, anti-glare and tilting options available. With the magnetic bezels the Mauna III Plus range doesn’t put functionality at the cost of aesthetics.
Product Description
The Mauna Plus range as well as having the fire rating, can be installed under insulation and low void clearance. With wattage switching and CCT options. Also, anti-glare and tilting options available. With the magnetic bezels the Mauna III Plus range doesn’t put functionality at the cost of aesthetics.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-30°C to 50°C
IK Rating
IK07
Install Area
Internal
Materials
Housing: Zinc coated sheet steel + PC
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.90(7W) 0.88(5W)
Max case temp (°C)
75
Class
G
CRI
82
Recommended/alternatives
Downloadables
Technical Summary
-
Beam Angle
55
-
Cut-Out (mm)
74mm
-
Default Setting
7W at 3000K
-
Dimensions (mm)
62x∅91
-
Max input current
2A 300μs
-
L80B10
77,000
-
Surge protection
2000V
-
Settable Wattage
5W/7W
-
Settable CCT
2700K/3000K/4000K/6000K
-
Driver Maximum Power (W)
5.9
-
Driver Output Voltage (Vdc)
63
-
Dimmable
Y
