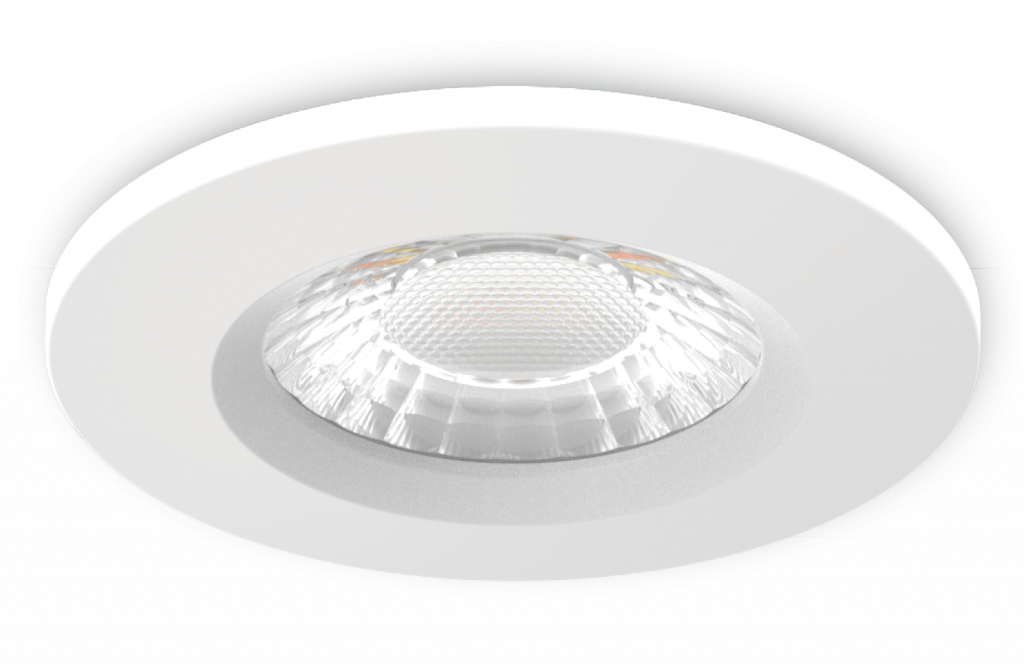

Mauna Mini firerated downlight 6W CCT switchable
Product
Code: MAUM06
- Intergated dimmable driver
- Interchangeable magnetic bezels wit different finishings
- Can be installed under insulation layer with void of 47mm
- Compact size
- CCT switchable with 4 choices
- Wattage switchable between 4W and 6W
Product Description
The Mauna Mini is a compact size versatile wattage and CCT switchable fire rated downlights suitable for 30,60 and 90 minute applications and may be installed under insulation. With a choice of interchangeable bezels.
Product Description
The Mauna Mini is a compact size versatile wattage and CCT switchable fire rated downlights suitable for 30,60 and 90 minute applications and may be installed under insulation. With a choice of interchangeable bezels.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-30°C to 50°C
IK Rating
IK07
Install Area
Internal
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.88
Max case temp (°C)
75
Class
F
CRI
82
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
45
-
Cut-Out (mm)
47
-
Default Setting
6W at 3000K
-
Dimensions (mm)
42x∅62
-
Max input current
10A/350μs
-
L80B10
78,000
-
Settable Wattage
4W, 6W
-
Settable CCT
2700k, 3000k, 4000k, 6000k
-
Efficiency (lm/W)
125
-
Maintained Lumen
150
-
Driver Maximum Power (W)
5
-
Driver Output Voltage (Vdc)
51-57
-
Dimmable
Y
