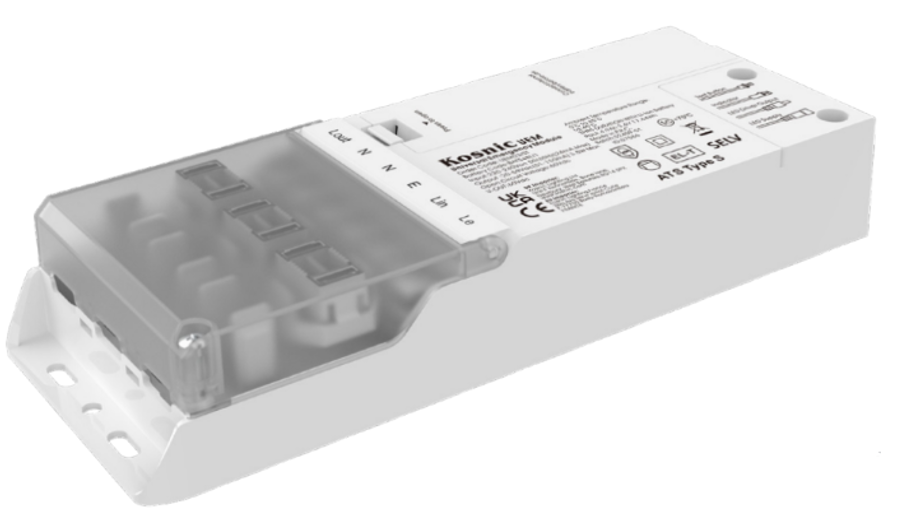

3W Universal Emergency Module
Product
Code: UEM03
- 3W universal emergency module
- Standard/Self-test
- Loop-in and loop-out push-wire terminals
- Built-in self-test function according to BS-EN-62034-2012
- Designed for use with all LED luminaires (class III) with external driver
- Easy Plug & Play installation
- For maintained or non-maintained emergency lighting systems
- Internal Li-ion battery with improved lifespan
- Easy battery replacement
Product Description
The 3W Universal Emergency Module (UEM03) is suitable for class III luminaires. This gives a typical power output of 3W but will depend on the characteristics of the luminaire.
Product Description
The 3W Universal Emergency Module (UEM03) is suitable for class III luminaires. This gives a typical power output of 3W but will depend on the characteristics of the luminaire.
General Specifications
Install Area
Internal
IP Rating
IP20
UEM/EME Charging Time (h)
24
EME conversion time
1
EME operation time
3
input current (max)
24
Max case temp (°C)
75
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Dimensions (mm)
185x71x32
-
Battery Capacity
4,800
-
Battery Output Wattage
3.5
-
Battery Voltage (Vdc)
3.6
-
Test Function
Manual
-
Output Voltage
24-54
