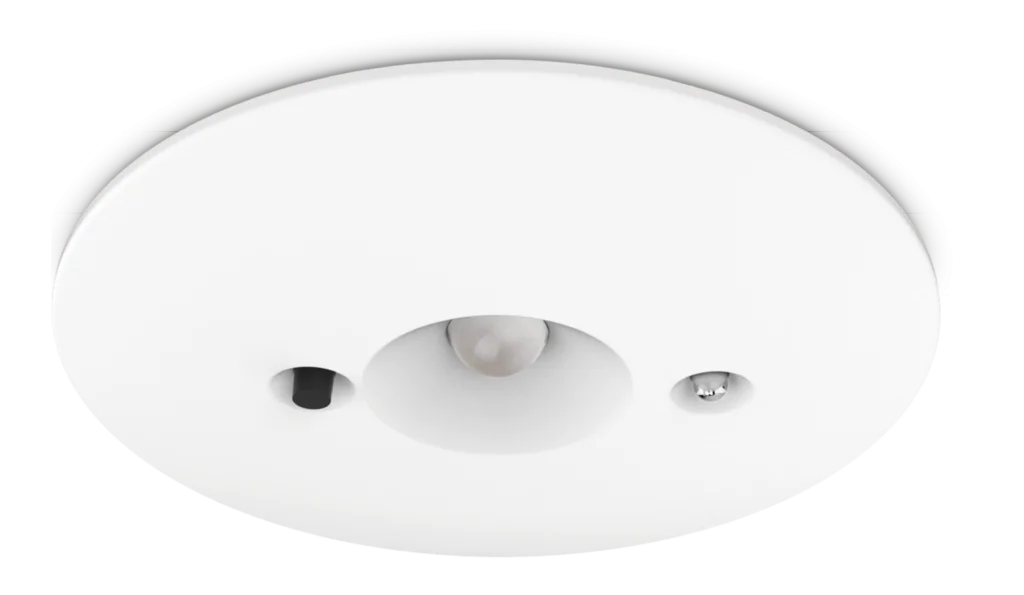

Nitro DALI 3W Emergency Downlight Non-Maintained
Product
Code: NTR03/DA
- DALI-2 conforming to EN 62386-202
- Non-Maintained, >3hrs
- Built-in LED status indicator
Product Description
The Nitro LED Non-Maintained Emergency Downlights are discrete recessed fittings that provide emergency lighting only. Options of a standard lens design with a circular light pattern or a corridor version lens with a beam that is designed to emphasis illumination along one axis more than the other. Self-test version available.
Product Description
The Nitro LED Non-Maintained Emergency Downlights are discrete recessed fittings that provide emergency lighting only. Options of a standard lens design with a circular light pattern or a corridor version lens with a beam that is designed to emphasis illumination along one axis more than the other. Self-test version available.
General Specifications
Install Area
Internal
IP Rating
IP20
UEM/EME Charging Time (h)
24
EME conversion time
1
EME operation time
3
input current (max)
15
Max case temp (°C)
75
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
45
-
Mounting Info

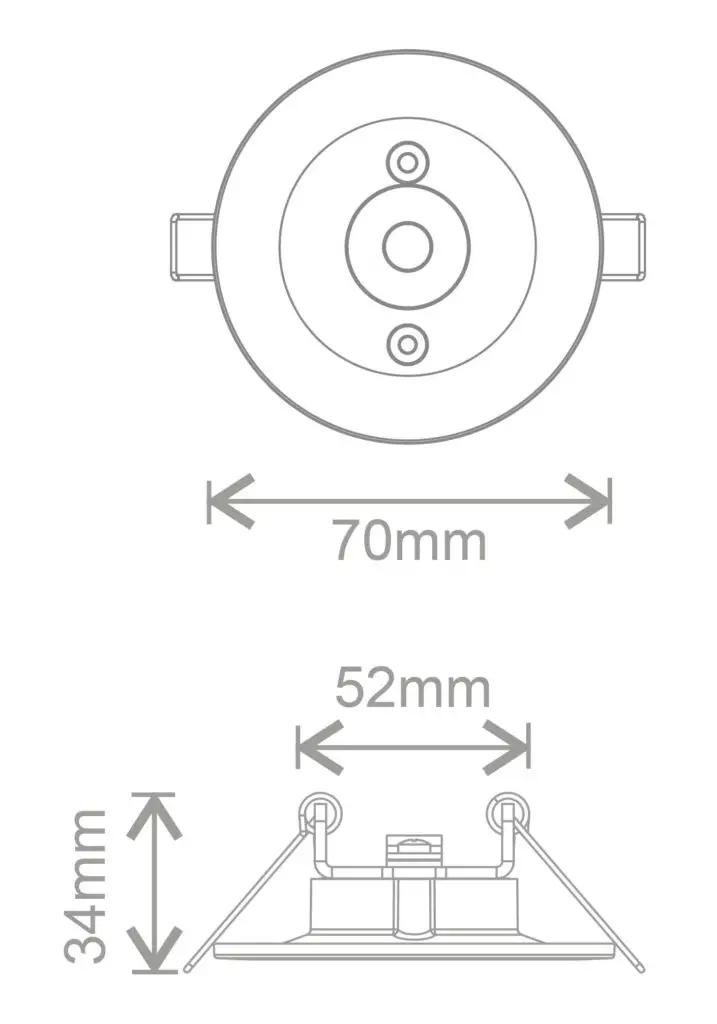

Recessed (58mm cut-out)
-
Efficiency (lm/W)
100
-
Emergency Luminous Flux (lm)
200
-
Battery Capacity
1,800
-
Battery Voltage (Vdc)
3.2
-
Input Power (Max)
3
-
Output Wattage (W)
2
