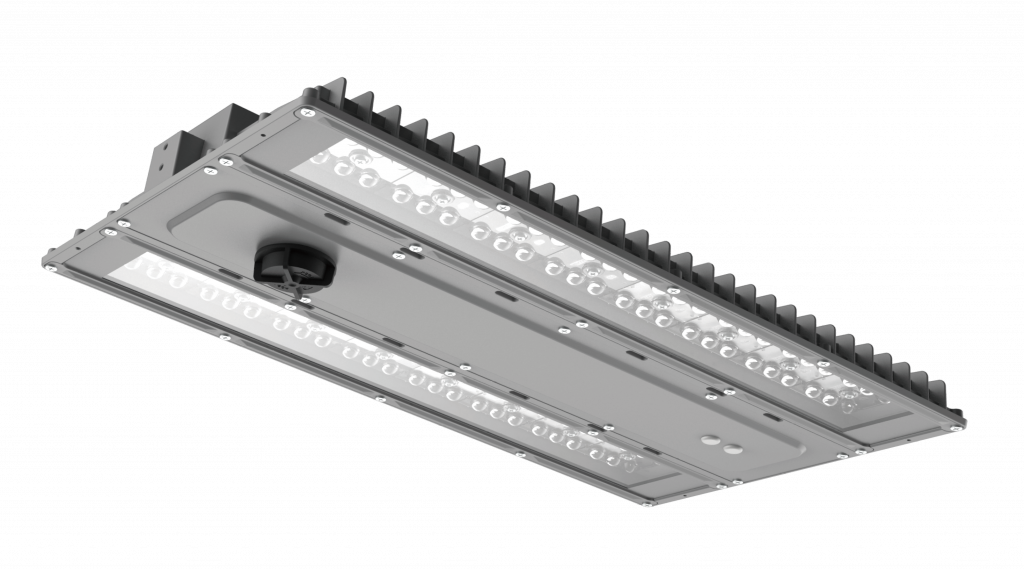

Arcus Pro Low Bay 100W/150W/200W switchable 90°x 90° 5000K

Product Code: ARCP200-W50
  • High efficiency up to 171lm/W
  • Switchable wattage
  • Optional plug-in emergency modules, available in standard, self-test and DALI
  • Optional plug-in emergency modules, available in standard, self-test and DALI
  • DALI dimming alternative driver available
  • IP65, vandal resistant IK09
  • Conduit, trunking or surface-mounting
  • BESA box fitting points
  • High rack optics
Product Description

The Arcus Pro adds wattage switching to the Arcus range, while keeping all the modularity. Along with the plug in sensors and multiple mounting options the Arcus Pro also has an option for DALI control. The Arcus Pro offers great energy saving and flexible modular design.

Product Description

The Arcus Pro adds wattage switching to the Arcus range, while keeping all the modularity. Along with the plug in sensors and multiple mounting options the Arcus Pro also has an option for DALI control. The Arcus Pro offers great energy saving and flexible modular design.

Warranty Image
Warranty Image

General Specifications

Voltage
100-277Vac 50/60Hz
Ambient Temp (°C)
-20°C to 50°C
IK Rating
IK09
Install Area
Internal
Materials
Housing: Die-cast alumimium
Nominal Life
50,000
IP Rating
IP65
Power Factor
0.95
Max case temp (°C)
90
Class
C
CRI
82

Technical Summary

  • Beam Angle

    90°x 90°

  • Default Setting

    200W

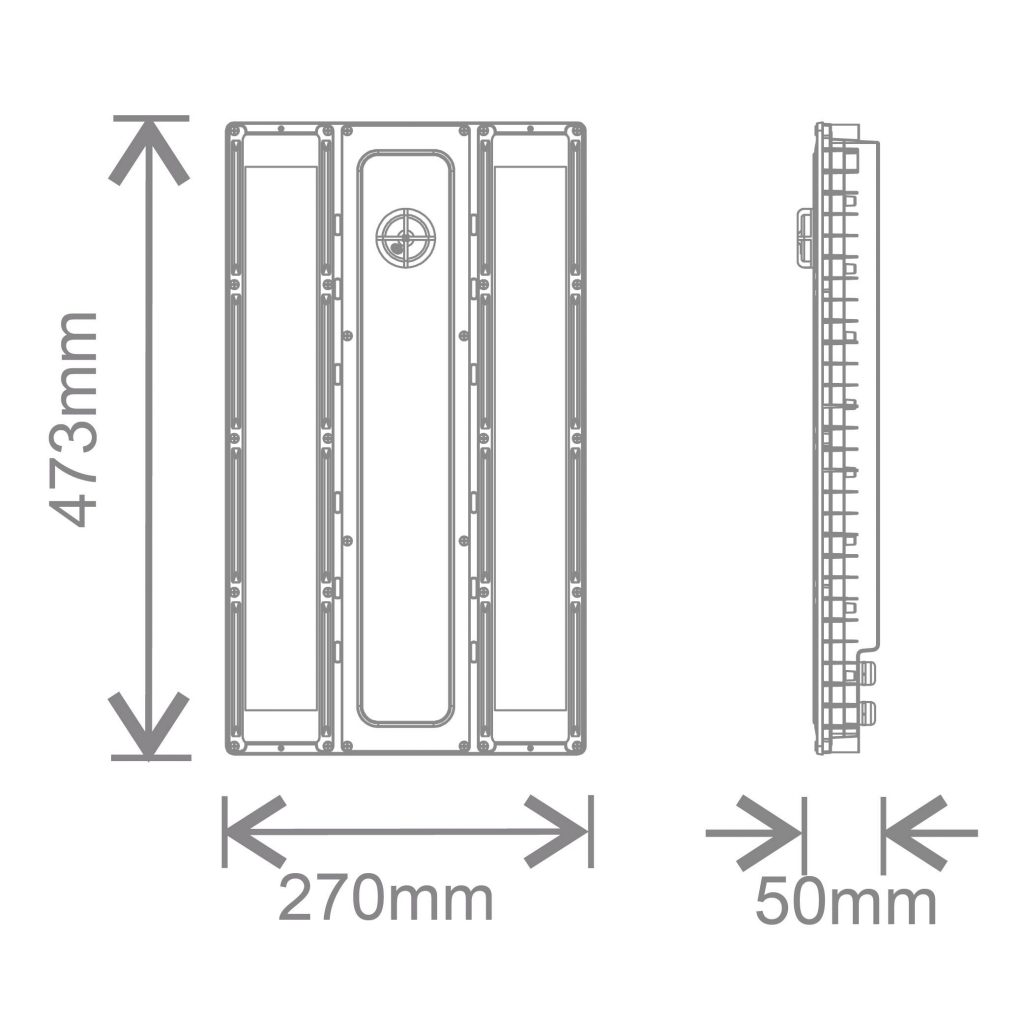

  • Dimensions (mm)

    473x270x50

  • Max input current

    100A/316μs

  • L80B10

    117,000

  • Surge protection

    6000V

  • Settable Wattage

    100W, 150W, 200W

  • Emergency Luminous Flux (lm)

    850

  • Driver Maximum Power (W)

    200

  • Driver Output Voltage (Vdc)

    180-260

  • Dimmable

    N
