Kennet III 45W 5ft batten CCT switchable, DALI
Product
Code: KEN35F-SCT/DA
- High efficiency up to 132lm/W
- UGR <19
- Switchable wattage and CCT (3000/4000/6000K)
- Optional plug-in microwave corridor sensor compatible with Uni-Remote
- Optional plug-in emergency modules, available in standard, self-test and DALI
- Ideal replacement for twin T8 surface mount battens
- 20mm Conduit entry
- BESA box fitting points
- DALI and PUSH dimming alternative driver
Product Description
The Kennet III is designed to be an excellent replacement for twin T8 surface mount battens. With CCT and wattage switching and flicker free output the improvement over fluorescent lights is dramatic, and with the options for DALI and push dimming the Kennet III is a perfect upgrade.
Product Description
The Kennet III is designed to be an excellent replacement for twin T8 surface mount battens. With CCT and wattage switching and flicker free output the improvement over fluorescent lights is dramatic, and with the options for DALI and push dimming the Kennet III is a perfect upgrade.
General Specifications
Voltage
220-240Vac 50/60Hz
Ambient Temp (°C)
-20⁰C to 50⁰C
IK Rating
IK08
Install Area
Internal
Materials
Housing: Power coated sheet steel + PC
Nominal Life
100,000
IP Rating
IP20
Power Factor
0.9
Max case temp (°C)
70
Class
C
CRI
83
Recommended/alternatives
No alternativesDownloadables
Technical Summary
-
Beam Angle
100
-
Default Setting
45W at 4000K
-

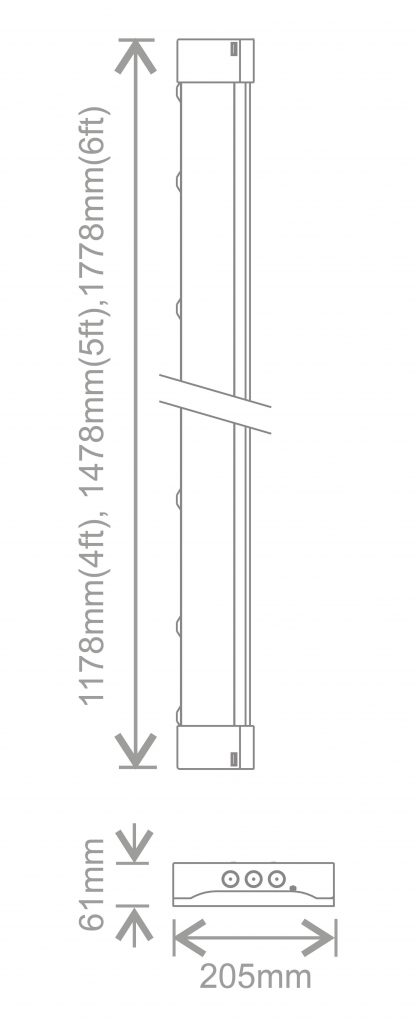

Dimensions (mm)
1478x205x61
-
Max input current
31A / 262μs
-
L80B10
69,000
-
Rated Power (W)
45
-
Surge protection
2000V
-
Settable CCT
3000K, 4000K, 6000K
-
Emergency Luminous Flux (lm)
250
-
Driver Output Voltage (Vdc)
50-140
-
Dimmable
N
