Rydal 2

Name: Rydal 2
SKU: RYD230-W40
Availability: InStock

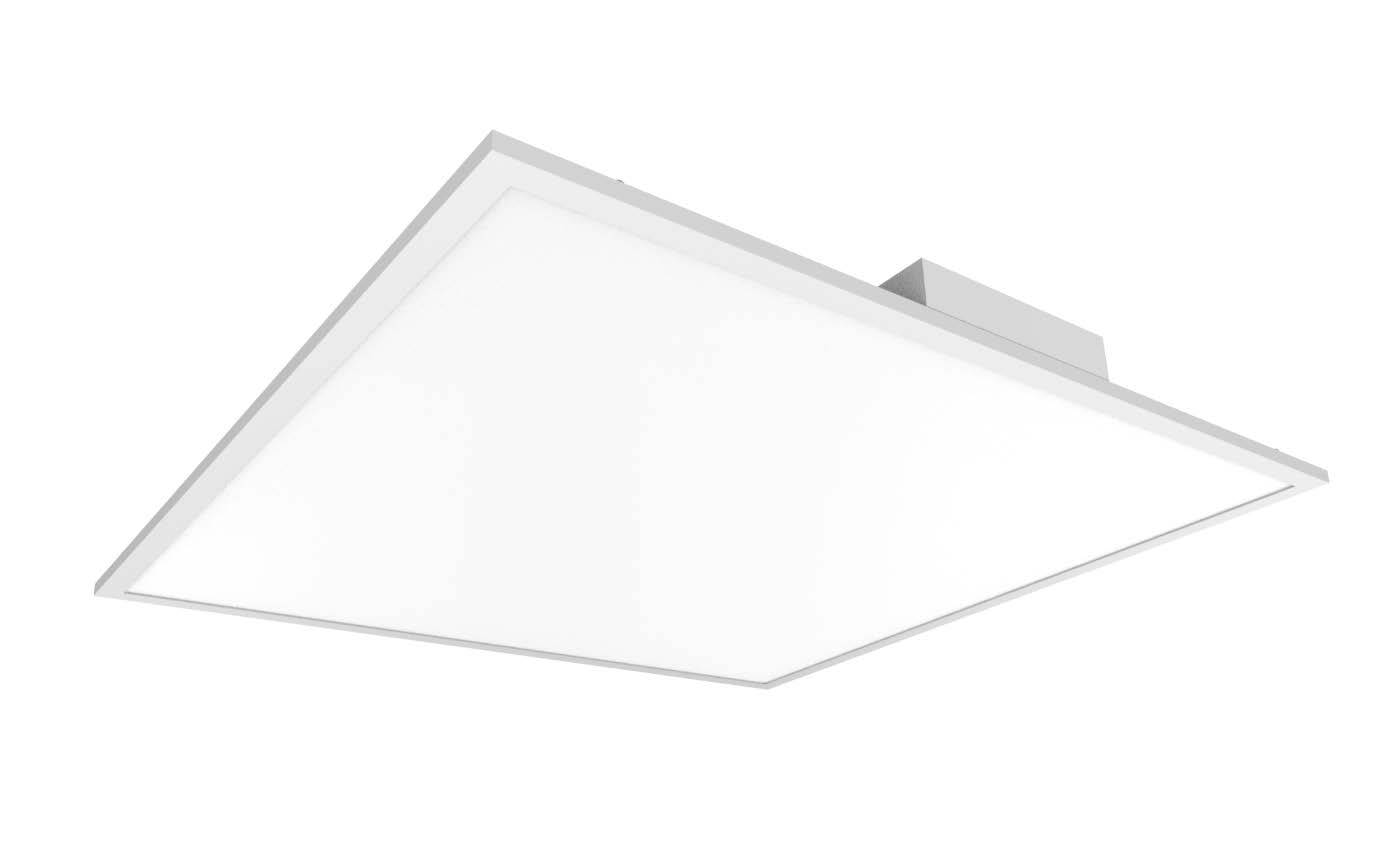

The Rydal is Kosnics standard 600 by 600 panel, with a energy savings compared to fluorescent fittings and a low glare flicker free output it makes and excellent direct LED replacement for retrofits.

Product Code: RYD230-W40

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Lumens

Built-in Option

Driver Output Current

Wattage

CCT

Input Voltage Supply

Driver Input Voltage

Ambient Temperature Range

Colour / Finish

IK Rating

Mounting Option

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Driver Dimensions

Maximum Current Draw

Rated Power

Emergency Luminous Flux

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Save up to 50% energy usage compared to traditional fluorescent fittings
TP(a) rated diffuser
DALI, 1-10V (0-10V) and PUSH alternative driver available
Flicker free
UGR<19
Direct backlit lighting with wide-angle optics
Optional anti-glare diffusers available

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:60,000 h

L70B50 Lifetime:60,000 h

IP Rating:IP20

Power Factor:0.95

Protection Rating:Class II

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Dimensions:595x595x34

Driver Dimensions:127x43x25

Max Input Current:137 mA

Rated Power (W):30 W

Driver Max. power:29 W

CCT:4,000K

Emergency Luminous Flux (lm):500 lm

Lumen:3,200 lm

Driver Output Current:750

Driver Output Voltage:32-39

Energy Class:E
