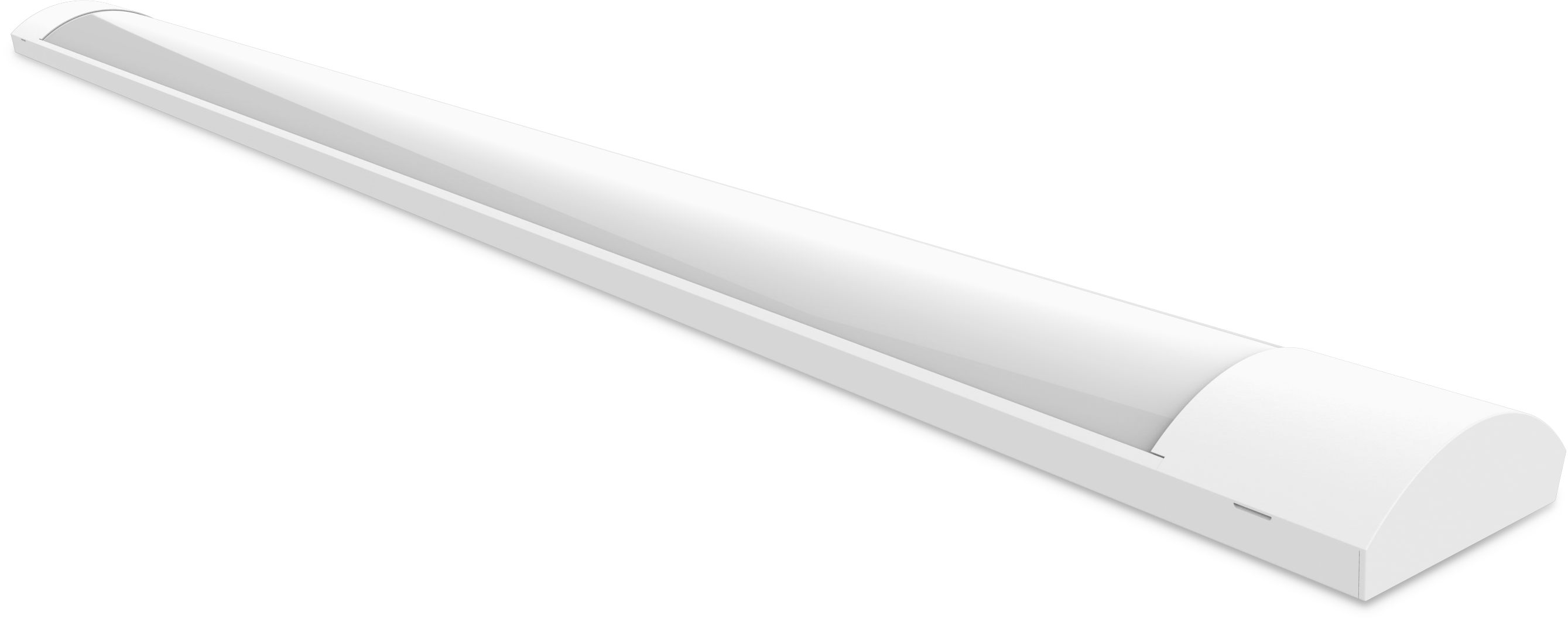

Slim Line

Name: Slim Line
SKU: SLM4F30
Availability: InStock

The Slim-Line LED Integrated Battens have a slim profile and integrated LED drivers. Available with a switchable CCT from a simple elegant design helping to reduce building energy and maintenance costs. The range of products is suitable for interior use in open plan offices, classrooms, corridors and retail premises.

Product Code: SLM4F30

Old Product Code: KBTN30LS2/SCT

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Built-in Option

Lumens

Wattage

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Length

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

Switchable CCT (3000K/4000K/6000K)
High efficiency of 120 lm/W
Slim profile
Simple external bracket mounting
Long operational life of 40,000 h
Flicker free

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK06

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP20

Power Factor:0.96, 0.98

Protection Rating:Class I

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:1200x124x42, 1500x124x42

Max Input Current:136 mA, 200 mA

Rated Power (W):30 W, 45 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):125 lm/W, 127 lm/W

Lumen:3,800 lm, 5,600 lm

Energy Class:D
