Tatio

Name: Tatio
SKU: KWWDL09-B30
Availability: InStock

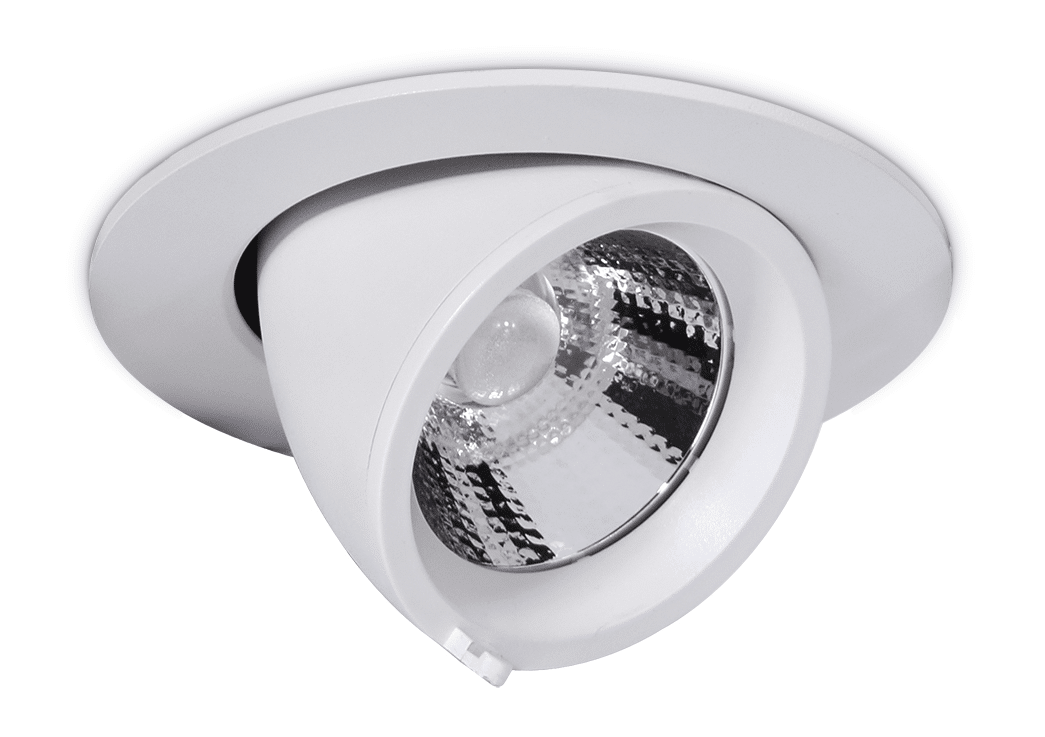

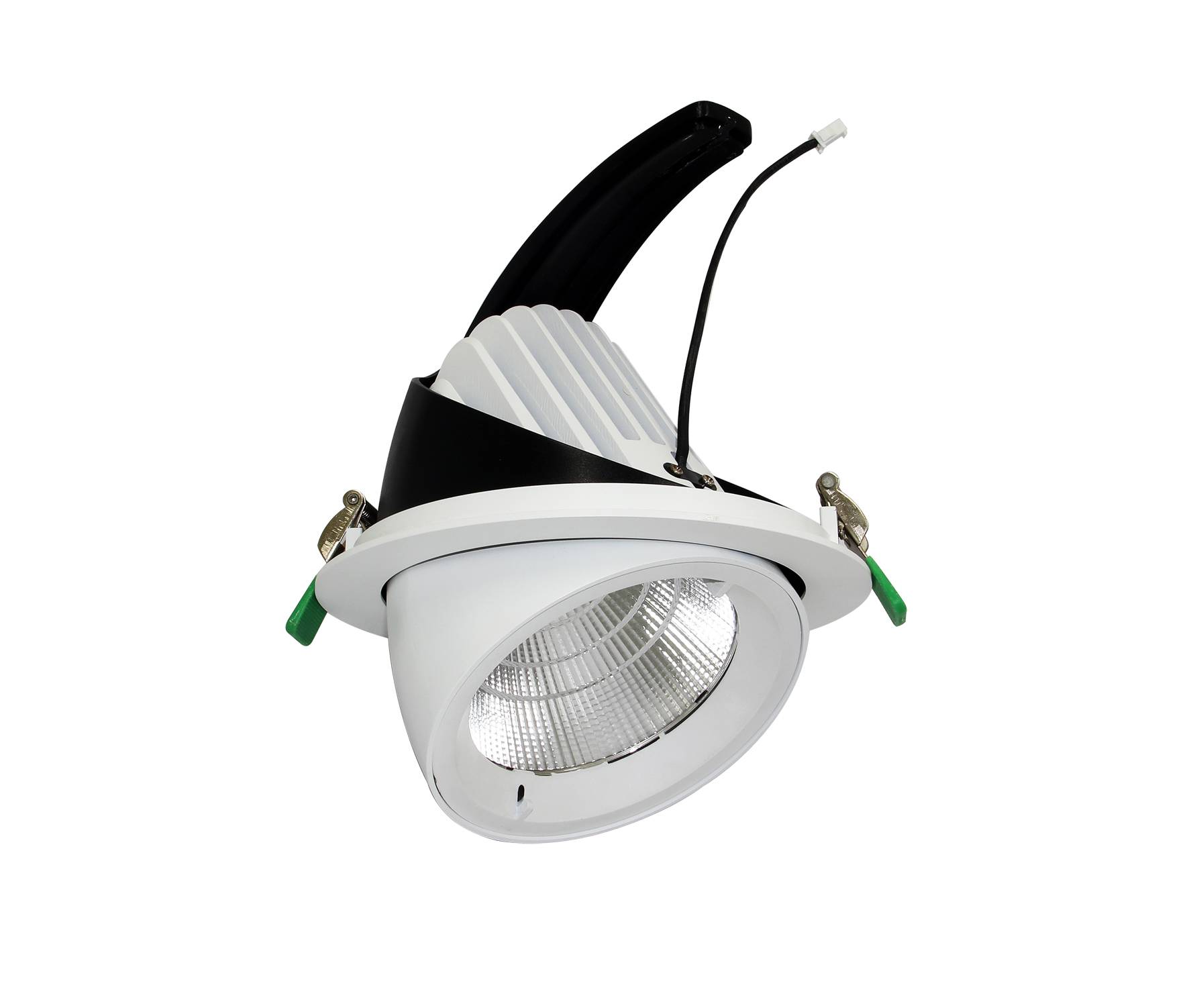

The Tatio LED Wall Washer Downlight rotates through 350 degrees and has a 35 degree tilt. Available in varies CCT and has a high CRI, suitable for retail display, showrooms, entertainment and hospitality. Made from cast aluminium with a high-quality reflector the Kosnic Tatio delivers a highly efficient, high quality lighting solution.

Product Code: KWWDL09-B30

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Lumens

Driver Output Current

Built-in Option

Beam Angle

Wattage

Cut-Out

CCT

Input Voltage Supply

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Clear

KEY FEATURES

High performance CREE COB LED
Negligible UV, ideal for retail application

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:180-264Vac 50/60Hz, 220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

Installation Area:Internal

IP Rating:IP20

Power Factor:0.57, 0.95

Protection Rating:Class II

LS CRI:82, 83, 84

SDCM:<6

TECHNICAL SUMMARY

Dimensions:130x∅158, 133x∅105, 159x∅188, 58x∅96, 65x∅100, 82x∅105

Driver Dimensions:100x43x22.5, 119x32x24, 134x44x28, 154x47x34

Max Input Current:110 mA, 155 mA, 69 mA

Rated Power (W):15 W, 24 W, 34 W, 9 W

Driver Max. power:10 W, 15 W, 26 W, 36 W

CCT:3,000K, 4,000K, 5,000K

Efficiency (lm/W):100 lm/W, 113 lm/W, 83 lm/W, 94 lm/W

Emergency Luminous Flux (lm):220 lm, 350 lm, 380 lm

Lumen:1,020 lm, 1,250 lm, 2,000 lm, 2,300 lm, 2,700 lm, 2,800 lm, 2,900 lm, 3,100 lm

Driver Output Current:250, 350, 580, 800

Driver Output Voltage:23-40 Vdc, 25-42 Vdc, 26-46 Vdc, 30-42 Vdc, 30-46 Vdc

Beam Angle:15, 16, 36, 38, 40

Cut-Out:∅145mm, ∅170mm, ∅82mm, ∅84mm, ∅90mm, ∅92mm
