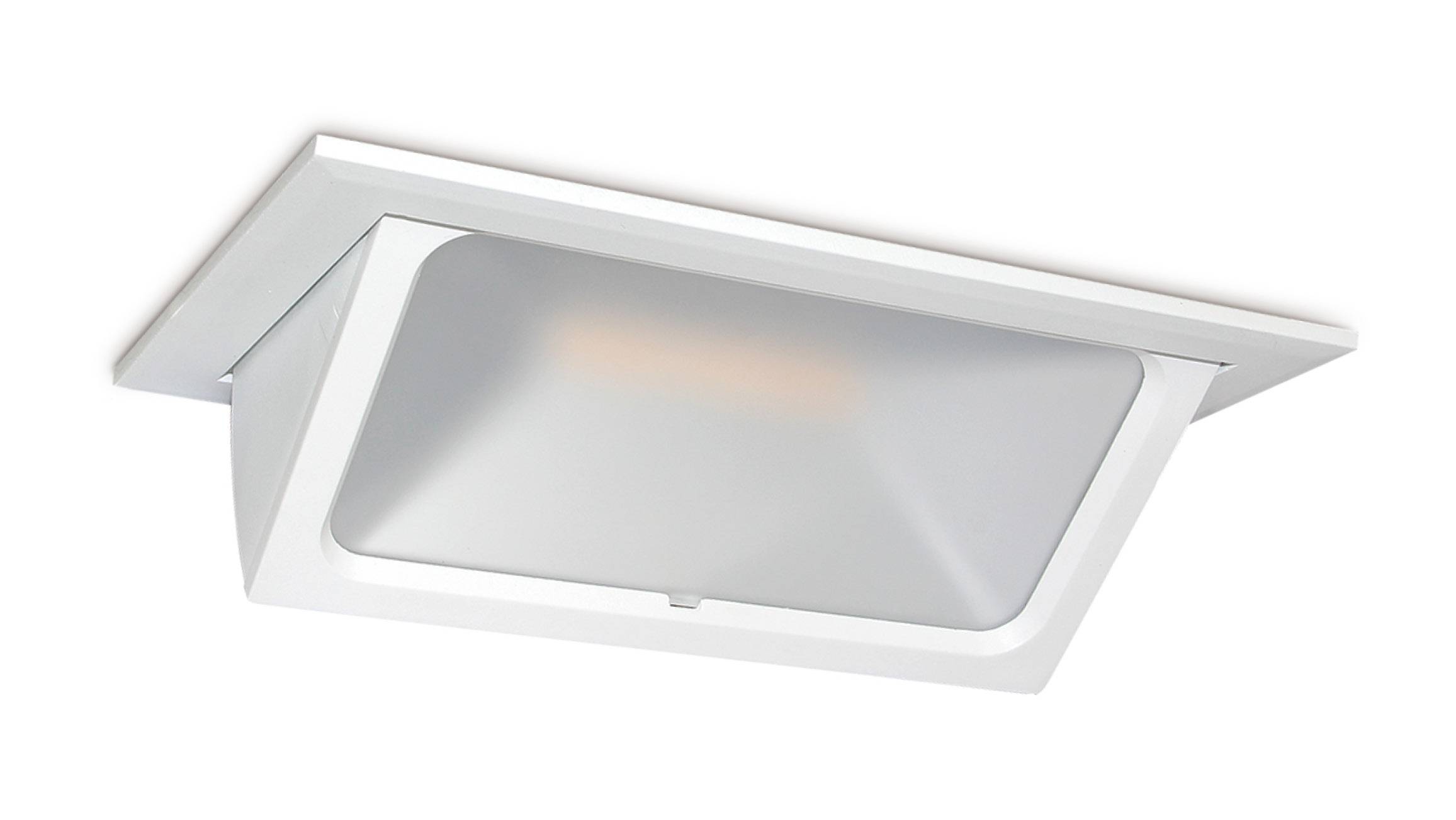

Tatio-R

Name: Tatio-R
SKU: KWWDL25Q-W30
Availability: InStock

The Tatio LED Wall Washer Downlight rotates through 350 degrees and has a 35 degree tilt. Available in varies CCT and has a high CRI, suitable for retail display, showrooms, entertainment and hospitality. Made from cast aluminium with a high-quality reflector the Kosnic Tatio delivers a highly efficient, high quality lighting solution.

Product Code: KWWDL25Q-W30

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Lumens

Driver Output Current

Built-in Option

Beam Angle

Wattage

Cut-Out

CCT

Input Voltage Supply

Driver Input Voltage

Colour / Finish

Ambient Temperature Range

IP Rating

Driver IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Emergency Luminous Flux

Driver Output Voltage

Clear

KEY FEATURES

High performance COB LED
Negligible UV, ideal for retail application
Wide beam angle of 110⁰
Optional emergency kit available

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:180-264Vac 50/60Hz

Ambient Temp:-20°C to 50°C

Installation Area:Internal

IP Rating:IP20

Driver IP Rating:IP20

Power Factor:0.95

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Dimensions:235x145x116.5

Driver Dimensions:154x47x34

Max Input Current:114 mA, 160 mA

Rated Power (W):25 W, 35 W

Driver Max. power:25 W, 35 W

CCT:3,000K, 4,000K, 6,000K

Efficiency (lm/W):92 lm/W, 96 lm/W

Emergency Luminous Flux (lm):160 lm

Lumen:2,050 lm, 2,120 lm, 3,050 lm, 3,120 lm

Driver Output Current:700

Driver Output Voltage:26-36, 40-53

Beam Angle:110

Cut-Out:220 x 130
