Telica 2

Name: Telica 2
SKU: TEL210-WHT
Availability: InStock

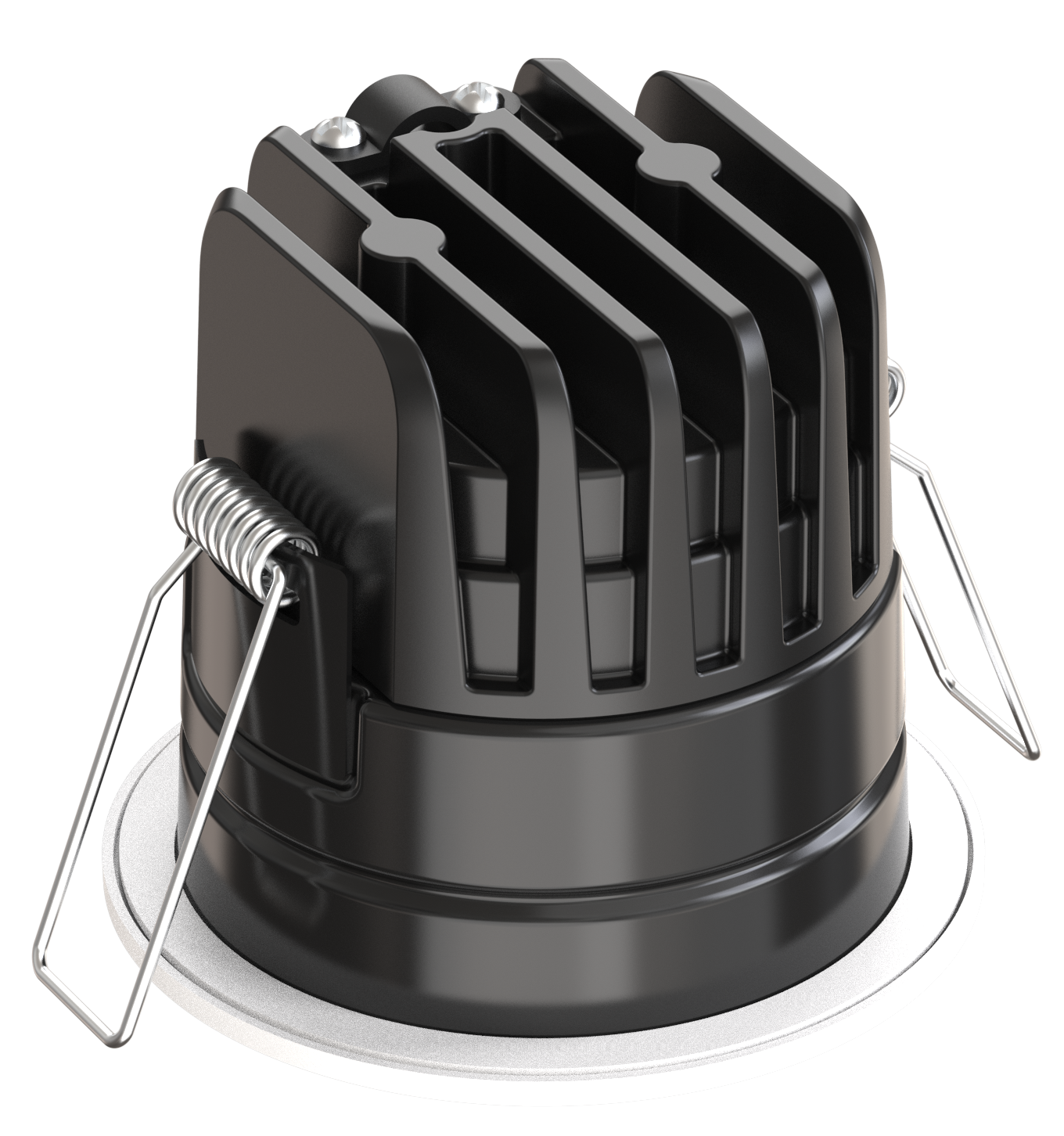

The Telica fire rated downlight is a mains dimmable that can be fitted with a range of bezels. Beneath the bezel you will find the CCT switch with three options, this combined with the mains dimming and range of bezels and IP65 rating makes the Telica II suitable for a range of applications.

Product Code: TEL210-WHT

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

Wattage

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

SDCM

Default Setting

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Driver Output Voltage

Clear

KEY FEATURES

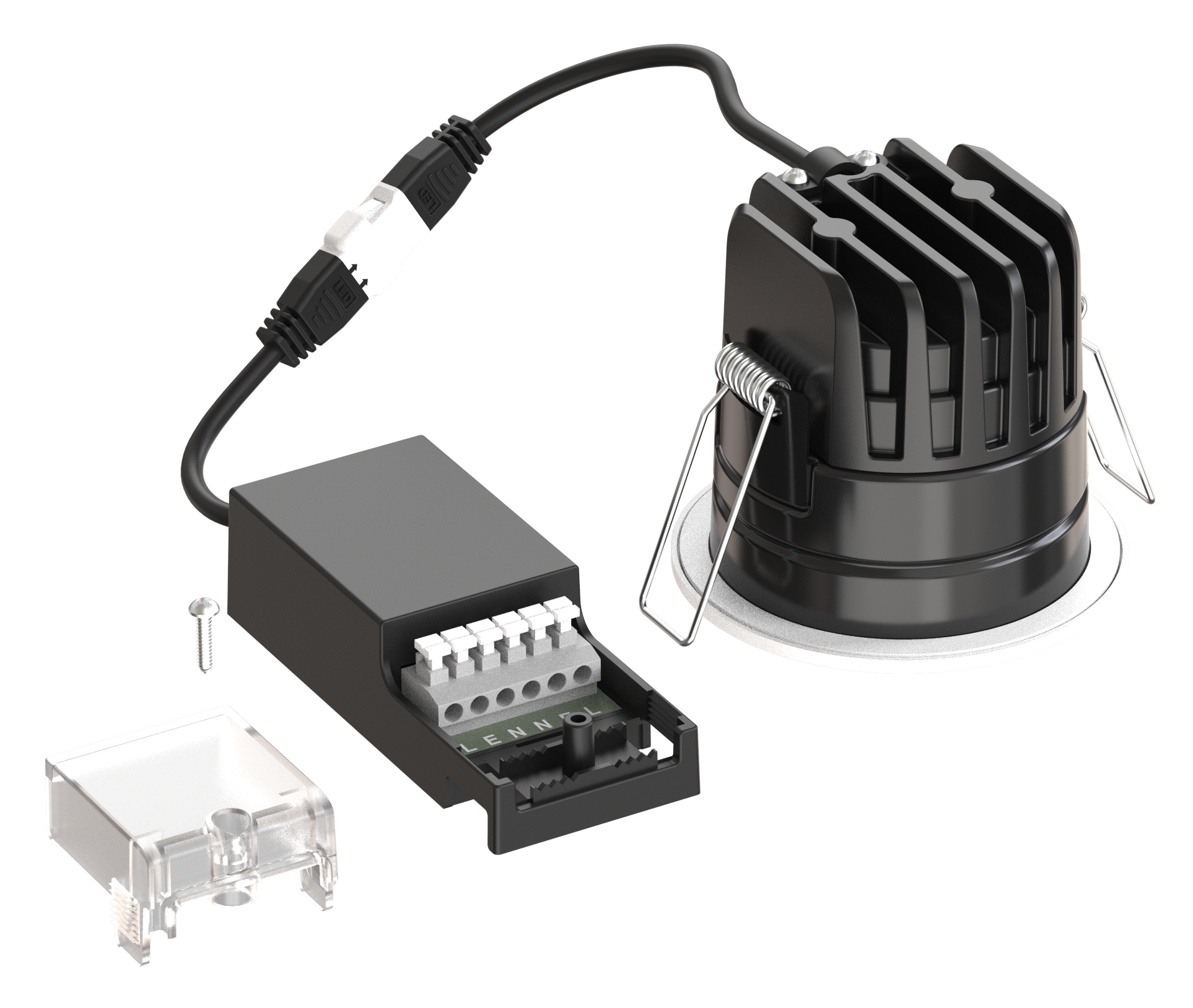

Dimmable driver included
Anti-glare reflectors available
Interchangeable reflectors with different finishes
Switchable colour temperature 3000K/4000K/6000K
IP65, Class II

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Driver Voltage:200-240Vac 50/60Hz

Ambient Temp:-15°C to 50°C

IK Rating:IK07

Installation Area:Internal

L80B10 Lifetime:50,000 h

L70B50 Lifetime:50,000 h

IP Rating:IP65

Power Factor:0.9

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:69x∅80

Driver Dimensions:95x40x25

Max Input Current:48 mA

Rated Power (W):10 W

Driver Max. power:10

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):98 lm/W

Lumen:980 lm

Driver Output Current:310

Driver Output Voltage:30

Beam Angle:40

Cut-Out:∅70mm
