Telica Tilt

Name: Telica Tilt
SKU: TEL10TW-WHT
Availability: InStock

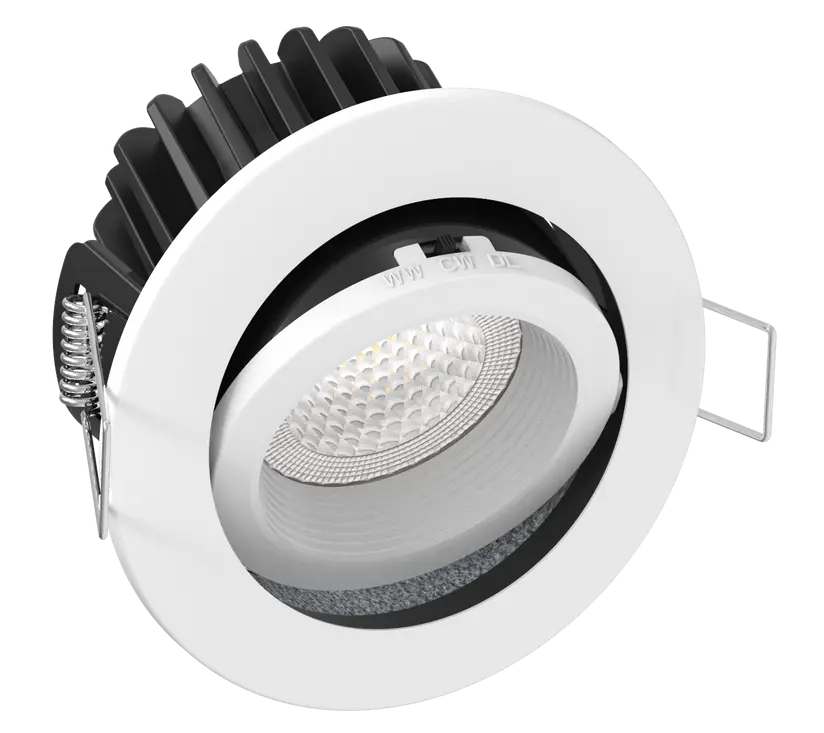

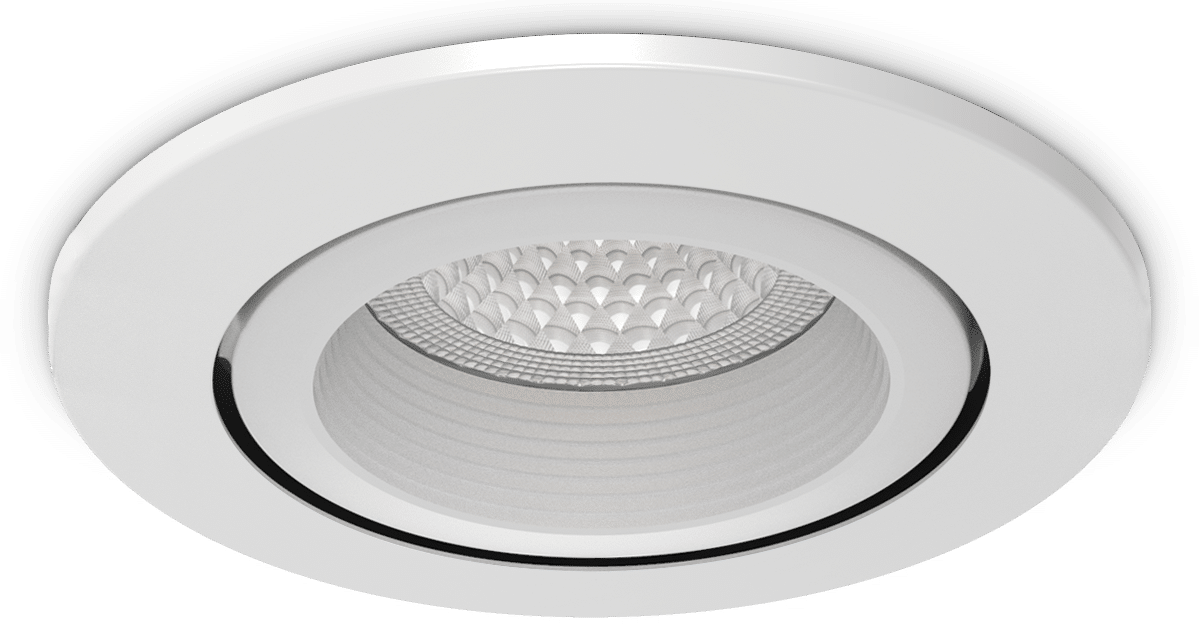

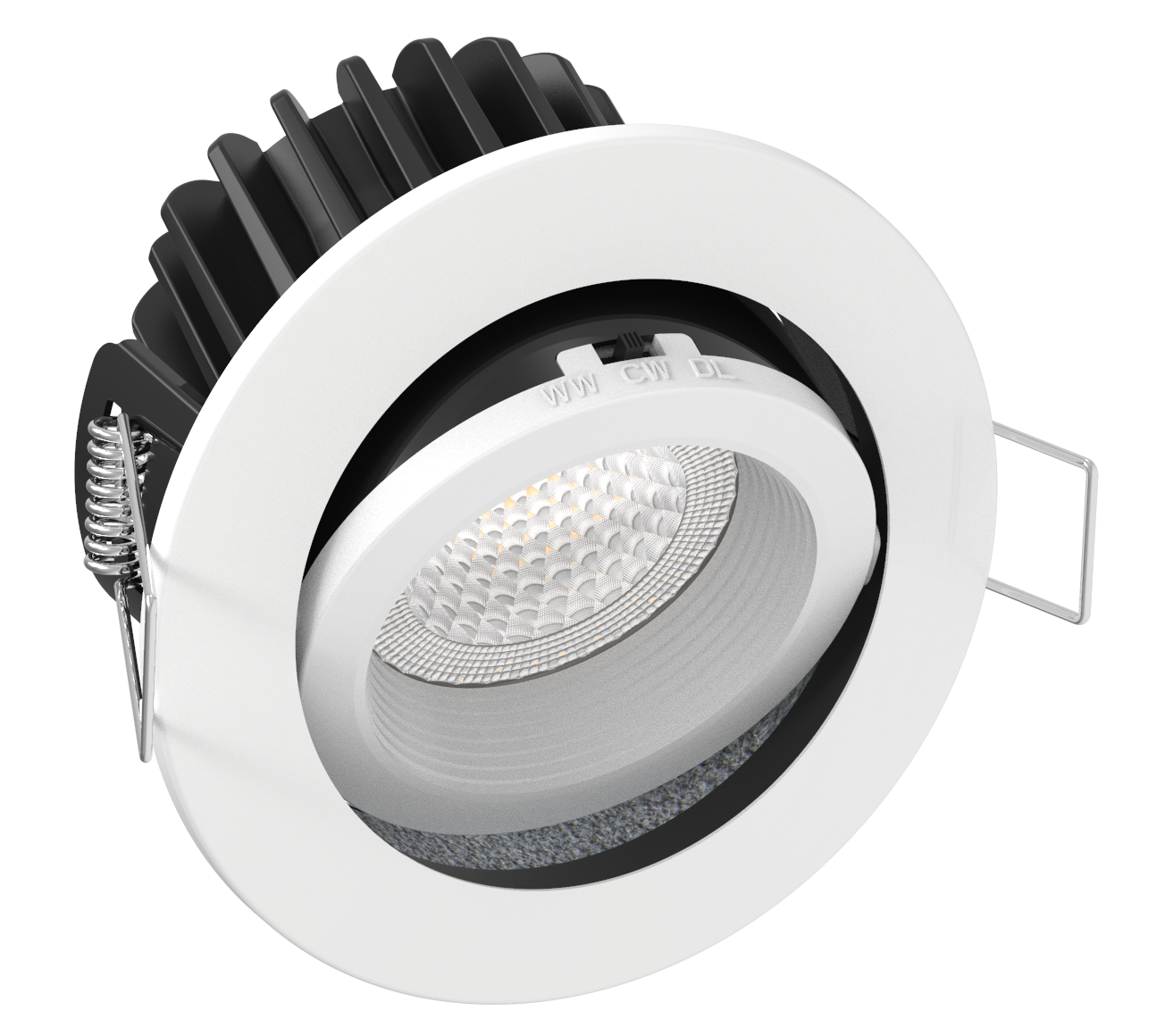

The Kosnic Telica Tilt tilting 10W dimmable fire rated downlights are suitable for 30, 60 and 90 minute applications. These compact downlights can be dimmed with mains dimmer switches and have a switchable CCT. There is a choice of interchangeable magnetic bezels with different finishes and a recessed anti-glare rim.

Product Code: TEL10TW-WHT

Old Product Code: KFDL10DTW/SCT-WHT

Data Sheet LDT File

Installation Area

Dimensions

Driver Maximum Power

Settable CCT

Lumens

Driver Output Current

Beam Angle

Cut-Out

Built-in Option

Wattage

CCT

Colour / Finish

Input Voltage Supply

Driver Input Voltage

Mounting Option

Ambient Temperature Range

IK Rating

L70B50 Lifetime

IP Rating

Driver IP Rating

Power Factor

Protection Rating

Driver Protection Rating

LS CRI

Driver Dimensions

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Driver Output Voltage

Energy Class

Clear

KEY FEATURES

Dimmable driver included
Interchangeable magnetic bezels with different finishes
Switchable colour temperature 2700K/4000K/6000K
Versions of black and white anti-glare reflectors

GENERAL SPECIFICATIONS

Voltage:220-240 Vac 50/60Hz

Driver Voltage:200-240 Vac 50/60 Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK07

Installation Area:Internal

L70B50 Lifetime:50,000 h

IP Rating:IP44

Driver IP Rating:IP20

Power Factor:0.95

Protection Rating:Class III

Driver Protection Rating:Class II

LS CRI:82

TECHNICAL SUMMARY

Dimensions:61x∅95

Driver Dimensions:131x40x26

Max Input Current:46 mA

Rated Power (W):10 W

Driver Max. power:9

Settable CCT:2700k, 4000k, 6000k

CCT:2700K, 4000K, 6000K

Efficiency (lm/W):79 lm/W

Lumen:790 lm

Driver Output Current:240

Driver Output Voltage:33-39

Beam Angle:36

Cut-Out:81

Energy Class:F
