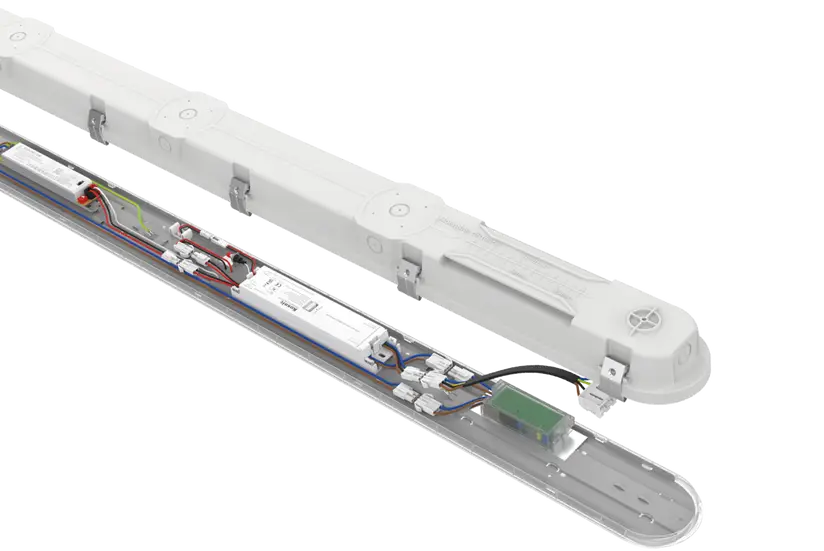

Trent 3
Trent has a range of lengths from 2 ft to 6 ft. All are CCT switchable with settings for 3000k, 4000k and 6000k as well as wattage switchable with 4 settings allowing for customization in situ.
KEY FEATURES
GENERAL SPECIFICATIONS
TECHNICAL SUMMARY
FEATURES
SPECIFICATIONS

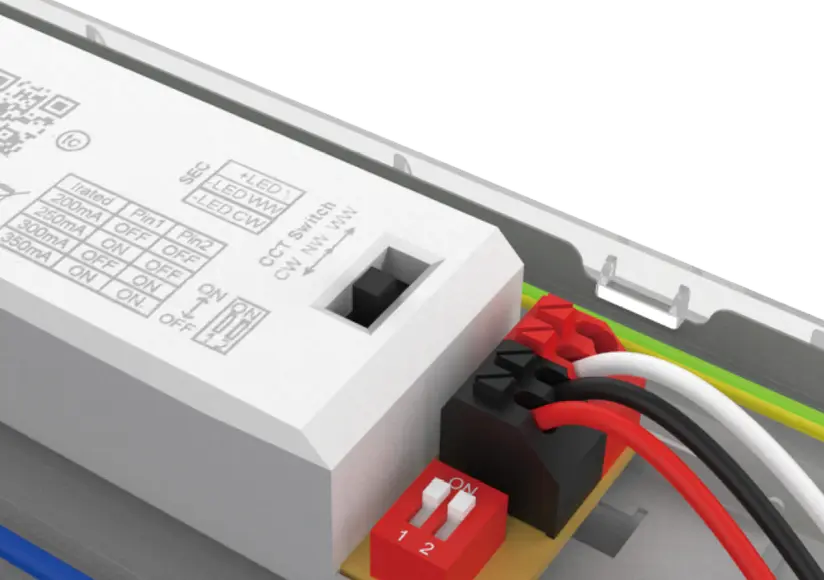

Multi-Function
CCT Switching
The CCT switch has three different options of 3000K, 4000K and 6000K and is located on the driver inside the fitting.
Wattage Switching
The wattage switch is located on the driver inside of the fitting and there are four different options to choose from.
Plug-in Sensor & Emergency
The plug-in sensor & emergency module can be easily connected to the luminaire by matching the labelled connectors.
Plug-in Emergency Module
Batten UEM – BEM303 (Standard) & BEM303/ST (Self-Test)
1. Firstly, plug the battery inside the emergency module and bend the two clips inside the fitting up into a 90° – they will stay in this position once bent.
2. Place the emergency module inside the fitting – making sure they have been secured by the clips you bent upwards.
3. Connect the cables with the corresponding labels together for easy installation, for example: A and A, B and B, etc.
4. Attach the LED indicator and test button to the base of the fitting and then connect the indicator to the emergency module.
Plug-in ON/OFF Microwave Sensor
Microwave Sensor – RMW-AC
1. Bend the two clips inside the fitting up into a 90° – they will stay in this position once bent and remove the rectangle hood in between the two clips.
2. Attach the sensor to the fitting using the clips that you previously bent upwards – make sure you install the sensor upside down.
3. Connect the cables with the corresponding labels together for easy installation, for example: A(S) and B(S), B and B, etc.
Universal Remote Control
The RMW-DC is also compatible with our Universal Remote Control, which allows you to configure the sensor to fit your environmen
Simply, configure the DIP switches inside the remote to your desired settings and then point the remote towards your fitting and click the ‘send’ button – the luminaire with briefly flicker, so you know it has received the configuration.
Installation Features
Conduit Entry Points
The 20mm Conduit Entry points are located on both sides of the fitting.
BESA Box Fitting Points
There are three BESA Box fitting points located on the bottom of the fitting – one in the middle and the others on either side.
Ultra-High Energy Efficiency
It achieves an ultra-high energy efficiency of up to 150lm/W.
IP65 & IK10 Rated
The Trent III is both IP65 and IK10 rated, making it suitable for all environments.
