Ventas 2

Name: Ventas 2
SKU: VEN10-SCT
Availability: InStock

Kosnic Ventas LED floodlights with PIR sensor option. Available in 10W, 20W, 30W and 50W with switchable CCT by remote control (included). The high-quality aluminium floodlights make ideal replacements for energy-hungry halogen lighting and are suitable for outdoor use offering high lumen efficiency and a long life

Product Code: VEN10-SCT

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Built-in Option

Lumens

Wattage

CCT

Beam Angle

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

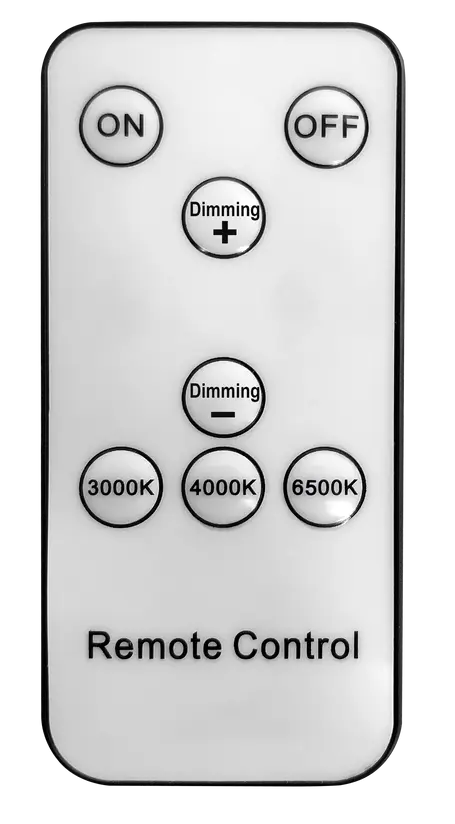

CCT switching with remote control included
Diecast aluminium body
Surge protection
Slim profile
1m of H05RN-F 3 x 1mm2 cable

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 40°C

IK Rating:IK04, IK06

Installation Area:External

L80B10 Lifetime:36,000 h

L70B50 Lifetime:36,000 h

IP Rating:IP65

Power Factor:0.75, 0.90, 0.99

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:101x134x30, 101x166x56, 129x162x31, 129x193x61, 163x197x34, 163x224x61, 201x238x37, 201x269x65

Max Input Current:132 mA, 145 mA, 220 mA, 242 mA, 44 mA, 58 mA, 88 mA, 97 mA

Rated Power (W):10 W, 20 W, 30 W, 50 W

Settable CCT:3000k, 4000k, 6500k

CCT:3000K, 4000K, 6500K

Efficiency (lm/W):100 lm/W, 66 lm/W, 84 lm/W, 93 lm/W

Lumen:1,680 lm, 2,800 lm, 4,980 lm, 660 lm

Beam Angle:105

Energy Class:E, F
