Vida

Name: Vida
SKU: VID4IN06
Availability: InStock

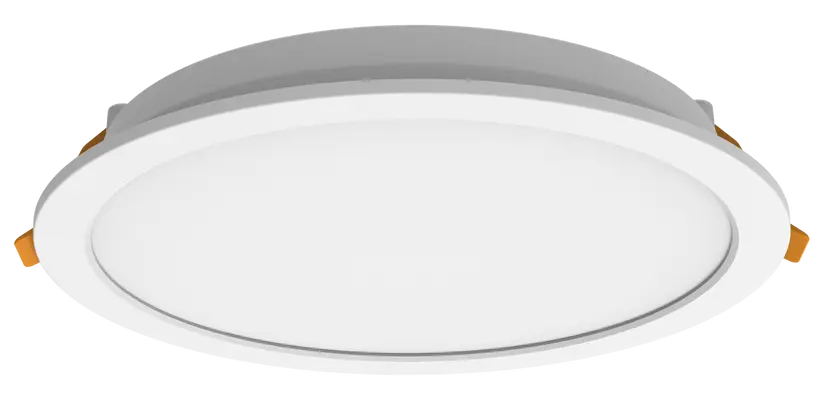

The Vida LED downlight panel comes in three sizes each with CCT switching for 3000K, 4000K and 6500K. With its slim profile and push wire terminal block installation in shallow ceiling voids is no issue. The Vida can optionally be surface mounted or mounted with an emergency kit.

Product Code: VID4IN06

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Lumens

Built-in Option

Wattage

CCT

Cut-Out

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

Mounting Option

L80B10 Lifetime

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

SDCM

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

Slim profile
CCT switching 3000K/4000K/6500K
Surface mount kits are available
Loop-in & loop-out push-wire connector is included

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK04

Installation Area:Internal

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP20

Power Factor:0.80, 0.85

Protection Rating:Class II

LS CRI:≥82

SDCM:<6

TECHNICAL SUMMARY

Default Setting:4000K

Dimensions:37x∅116, 37x∅166, 37x∅220

Max Input Current:113 mA, 33 mA, 61 mA

Rated Power (W):12 W, 22 W, 6 W

Settable CCT:3000k, 4000k, 6500k

CCT:3000K, 4000K, 6500K

Efficiency (lm/W):100 lm/W, 83 lm/W

Lumen:1,200 lm, 2,200 lm, 500 lm

Cut-Out:∅105mm, ∅155mm, ∅205mm

Energy Class:E
