Volta 3

Name: Volta 3
SKU: VOL4F36-SCT
Availability: InStock

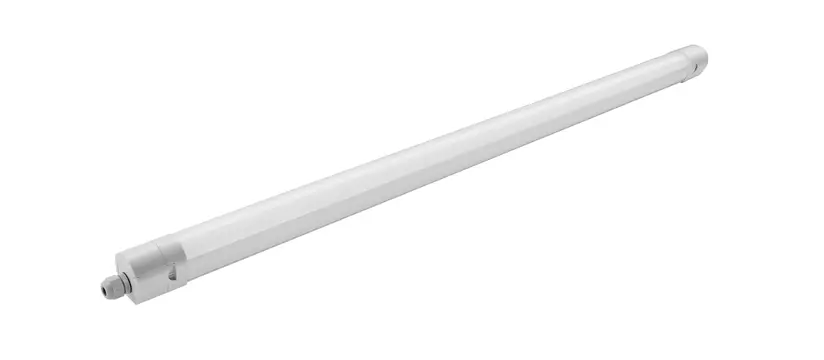

The Kosnic Volta III LED non-corrosive battens have a full PC body and utilise high performance LEDs to offer outstanding lumen efficiency. They have terminals at each end for use with the optional interlink connector.

Product Code: VOL4F36-SCT

Old Product Code: KINC36B4F/SCT

Data Sheet LDT File

Installation Area

Dimensions

Settable CCT

Built-in Option

Lumens

Wattage

CCT

Input Voltage Supply

Ambient Temperature Range

Colour / Finish

IK Rating

L80B10 Lifetime

Length

L70B50 Lifetime

IP Rating

Power Factor

Protection Rating

LS CRI

Default Setting

Maximum Current Draw

Rated Power

Efficiency (lm/W)

Energy Class

Clear

KEY FEATURES

IP65 compliant, suitable for indoor or outdoor use
Durable and rugged IK08 polycarbonate construction
High efficiency output
Designed for interlink with pass-through wiring
Switchable CCT (3000/4000/6000K)
Optional interlink connection modules and end cap
Optional microwave sensor with remote control

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Ambient Temp:-20°C to 50°C

IK Rating:IK08

Installation Area:Internal and External

L80B10 Lifetime:54,000 h

L70B50 Lifetime:54,000 h

IP Rating:IP65

Power Factor:>0.94

Protection Rating:Class I

LS CRI:≥82

TECHNICAL SUMMARY

Default Setting:4000K at 36W

Dimensions:1235x59x67

Max Input Current:165 mA

Rated Power (W):36 W

Settable CCT:3000k, 4000k, 6000k

CCT:3000K, 4000K, 6000K

Efficiency (lm/W):127 lm/W

Lumen:4,560 lm

Energy Class:E
